Specifications
Prod Model: |
MS-010 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Carton Size: |
1550 X 740 X 1410mm |
Driving Type: |
Electric |
Loading Type: |
Sitting Type |
Weight: |
155kgs |
Style: |
Midsize |
Product Description

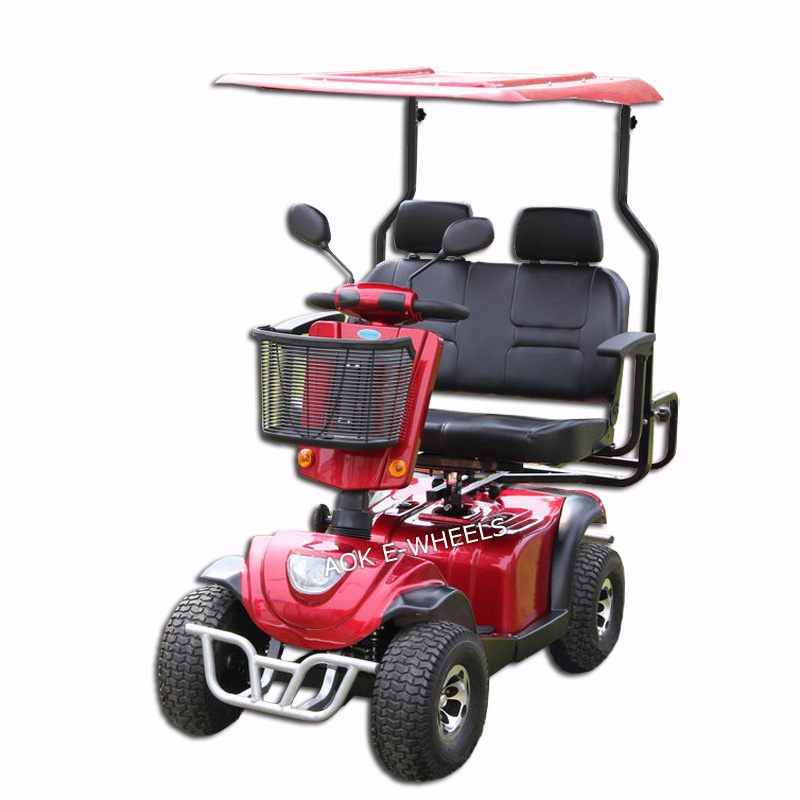

1300W 24V Taiwan Motor Electric Mobility Scooter with Double Seats
Specification
Specification Details: | Motor | 24V 1300W (Made in Taiwan) |
Battery | 12V 100Ah x 2 lead acid battery |
Controller | PG/Curtis |
Charger | AC100-240V50/60HZ 6A |
Charge time | 8~10h recommended |
Front Tyres | 15"*6.50-6 " |
Rear Tyres | 15"*6.50-6 " |
Performance & Main components
Performance & Main components: | Max. forward speed | 6~18km/h(adjustable) |
Max. backward speed | 2~6km/h(adjustable) |
Ground clearance | 110mm/4.33in. |
Turning radius | 1.7m/66.93in. |
Braking distance | 2m/78.74in. |
Climbing capability | 16° |
Packaging&Delivery
Packaging Details: | Weight capacity | 280Kg/616lbs |
Gross weight | 155kg/341.72lbs |
Net weight | 141kg/310.85lbs(with 2 batteries) |
Battery weight | 23.5kg/51.8lbs x 2 |
Dimensions | 1550 x 740 x 1410mm |
61.02 x 30.20x 55.51in |
Delivery Details: | 40 days |
