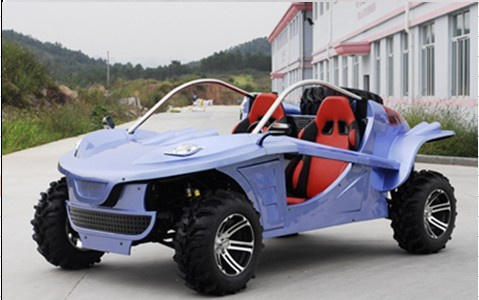

Home Yongkang Kaqite Leisure Products Factory 1300CC Engine Go Kart (Q8-1300)
Specifications
| Prod Model: | Q8-1300 |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Start-up: | Electric |
| Transmission: | Automatic |
| Displacement: | >400CC |
| Certification: | CE |
Product Description
Producer: 1300ccHONDA AUTOMATIC 4*2Type: 3 cylinders, 4-stroke, liquid-cooled juel injection
Bore x stroke: 72mm x 66.5mm
Compression ratio: 9.5: 1
Max. Power(kW@r/min): 38/6, 000
Maximum torque(N. M@r/min): 70/3500-4000
Starting: Electric
Ignition: CDI
Lubrication: Force and splash
Transmission: Manual clutch, 5-shift/reverse
Fuel type: RQ93 (unleaded)
Capacities:
Turning radius: 157.5" (4, 000mm)
Fuel tank: 30.0L
Engine oil: 2, 900ml
Coolant: 4, 000ml
Starting: <5s
Climbing: 40'- 45'
Battery: 12V, 52Ah
Fuse: 35A
Max. Speed: 90 kilometer/h
Chassis:
Brake: Hydraulic disc both on front and rear, right foot control
Front tire: 27x11-14
Rear tire: 27x11-14
Suspension: Independent wishbone, coil-over shock with reservior for both front and rear
Drive train: 2WD/4WD switchable
Dimension
Overall length: 3250mm
Overall width: 1700mm
Overall height: 1360mm
Wheelbase: 2350mm
Ground clearance: 250mm
N. W. /G. W.: 570kg /580kg
