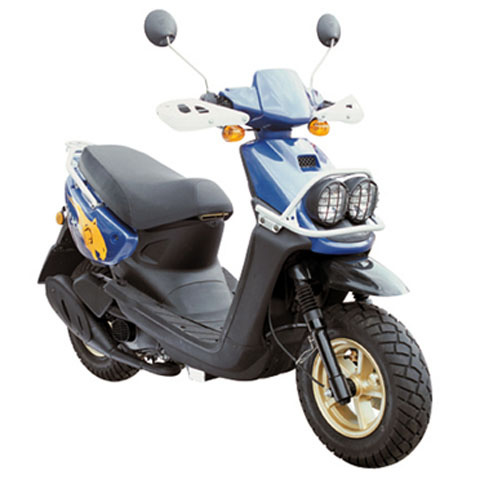

Home Shandong Pioneer Motorcycle Co., Ltd. 125cc Scooters (XF125T-10E)
Specifications
| Prod Model: | XF125T-10E EEC |
|---|
Product Description
Model No: XF125T-10E EECEngine
Type 124.6cc, single-cylinder, 4-stroke, air-cooled
Bore x Stroke 52.4 x 57.8
Carburetor type BS26
Ignition CDI
Transmission V belt stepless (automatic)
Starting system Electric/kick-back
MAX power and rotate speed 6.12 KW/8000r/min (10.8hp/8000/r/min)
Chassis
Suspension/Front Spring oil damper
Suspension/Rear Swing-arm spring oil damper
Brakes/Front Disc type
Brakes/Rear Drum type
Tires/Front 120/90-10 150kp (21.7psi)
Tires/Rear 130/90-10 225kp (32.6psi)
Dimensions
Length 1920mm (75.6"
Width 760mm (29.9"
Height 1160mm (45.67"
Wheelbase 1345mm (52.9"
Dry Weight 131kg (288 Lbs)
Fuel Capacity 5.7L (1.25gal)
Other
Color White, blue, black, red, orange
