Specifications
Prod Model: |
GN125H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fuel: |
Gas / Diesel |
Condition: |
New |
Engine Type: |
4-Stroke |
Type: |
Chopper |
Displacement: |
51-125CC |
Product Description

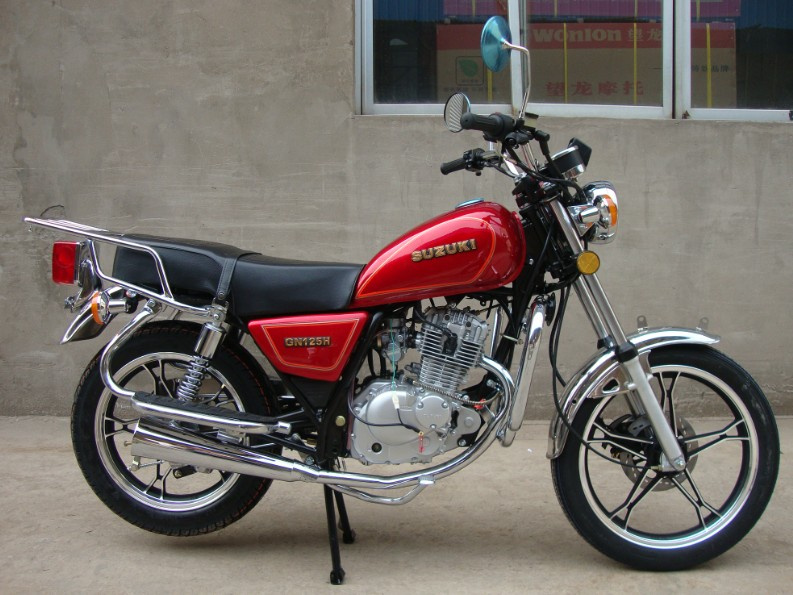

This model is instaled with the original suzuki engine gn125, the best quality and outstanding performance.
Technical Specifications |
Engine |
Frame |
Engine model |
WJ157FMI-2 |
Dimension(L× W× H) |
2040× 815× 1180 |
Cylinder |
Single |
Wheel Base(mm) |
1330 |
Valve |
4 Stroke |
Dry Weight(kg) |
115 |
Cooling |
Air Cooling |
Max. Load(kg) |
150 |
Bore × Stroke |
56.5 × 49.5 |
Max. Speed(km/h) |
90 |
Displacement |
124.1 |
Clutch Type |
Manual |
Starter |
Electrical/Kick |
Brake(Fr. /Rr. ) |
Disc/Drum |
Ignition |
C. D. I |
Transmission |
Chain |
Max. Power(kw/r/min) |
7.5[8500± 500] |
Wheel |
Alloy |
Max. Torque(N. m/r/min) |
8.2[7500± 500] |
Tyre Size |
3.25-18\110/90-16 |
Package |
CBU/SKD |
CKD |
Packing Status |
Carton With Iron Bracket |
Carton With Wooden Bracket |
Packing Quantity In One 40' HQ |
105 |
|
