Home Panan Jiadesheng Industry And Trade Co., Ltd. 125CC ATV, Automatic with Reverse, Electric Start (ET-ATV048)

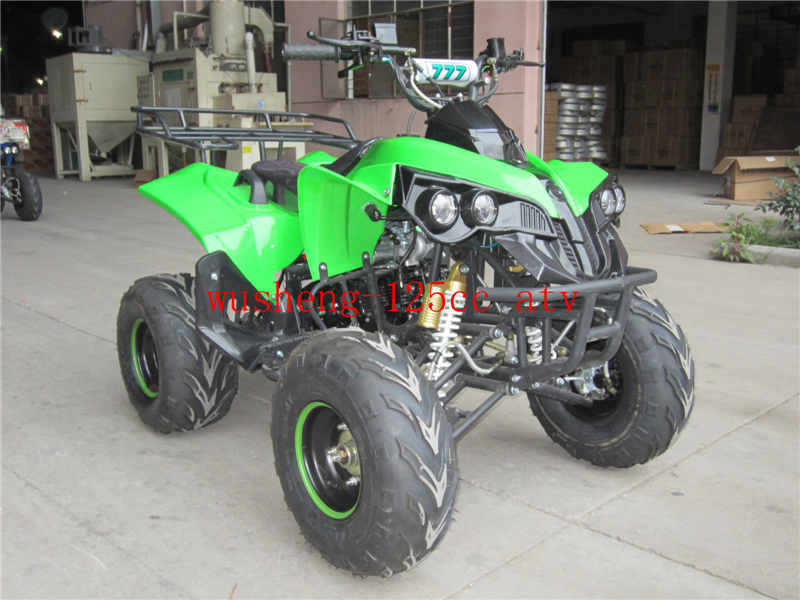

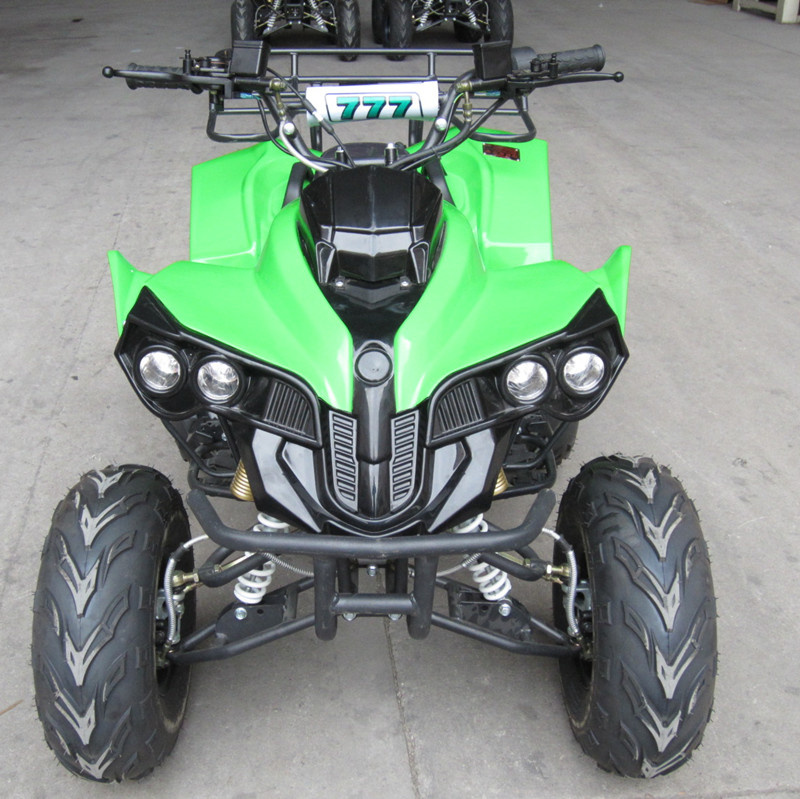

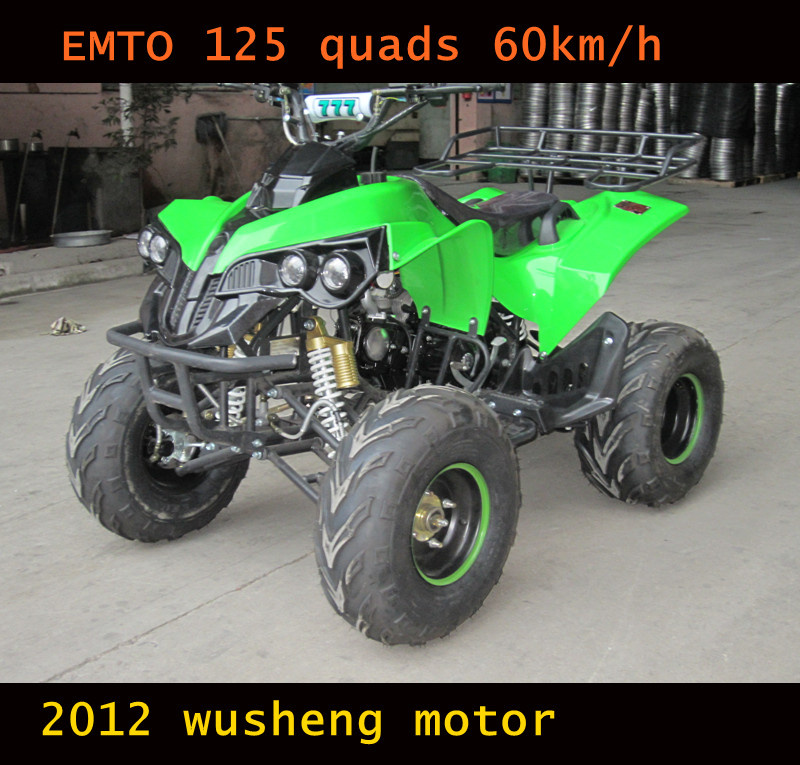

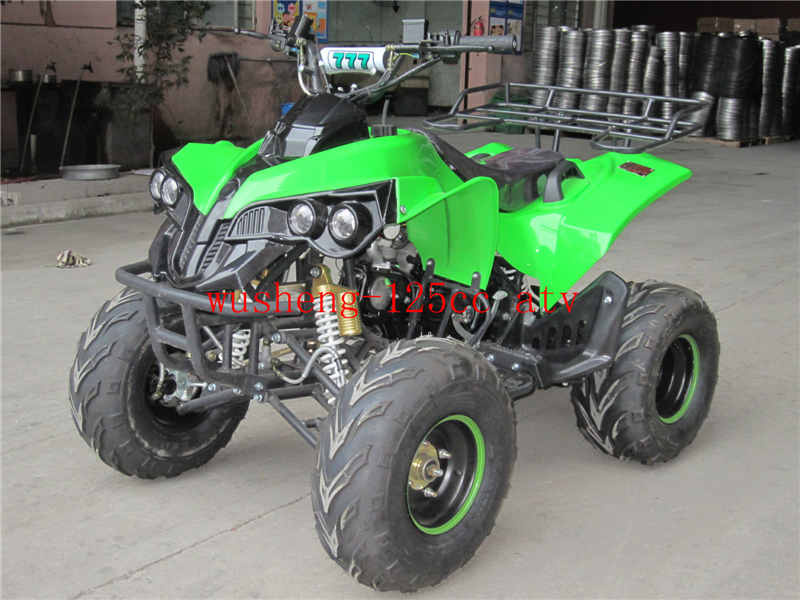

125CC ATV, Automatic with Reverse, Electric Start (ET-ATV048)
| Price: | US $ 385-425/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
Specifications
| Prod Model: | ET-ATV048 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Size: | 125cc |
| Transmission: | 3 Forwads and 1 Reverse |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Without Door |
| Transmission System: | Chain Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Certification: | CE |
| Displacement: | 125CC |
Product Description
Engine:1.125CC, 4-stroke, single cylinder, air-cooling
2. Displacement: 125ml Ignition: CDI 3. Starting system: Electric
4. Transmission: 3 speed forwards and 1 reverse
Chassis: 1. Brakes (Front/Rear): Hydraulic disc
2. Absorber (front/rear): Spring - absorber
3. Tires(Front/Rear): 16x8.0-8/16x8.0-8
4. Drive train: Chain Fuel capacity: 3L
Dimensions: 1. Wheel base: 850mm Seat height: 630mm
2. Ground clearance: 190mm3. N. W: 88kg G. W: 99kg
4. Carton sizes: 1280X690X710mm
Other: Max speed: 60km/h Max load capacity: 100Kgs
Container: Qty/20FCL: 30pcsQty/40FCL: 69pcsQty/40HQ: 92PCS.
| ATV-048 | Engine: | 1. 125CC, 4-stroke, single cylinder, air-cooling | ||||
| 2. Displacement:125ml Ignition: CDI | 3. Starting system: electric | |||||
| 4. Transmission: 3 speed forwards and 1 reverse | ||||||
| Chassis: | 1. Brakes (Front/Rear):Hydraulic disc | |||||
| 2. Absorber (front/rear):Spring - absorber | ||||||
| 3. Tires(Front/Rear): 16x8.0-8/16x8.0-8 | ||||||
| 4. Drive train: Chain Fuel capacity: 3L | ||||||
| Dimensions: | 1. Wheel base:850mm Seat height:630mm | |||||
| 2. Ground clearance:190mm | 3. N.W: 88kg G.W:99kg | |||||
| 4. Carton sizes:1280X690X710mm | ||||||
| Other: | Max speed: 60km/h Max load capacity: 100Kgs | |||||
| container: | Qty/20Fcl:30pcs | Qty/40Fcl:69pcs | Qty/40HQ:92pcs | |||
