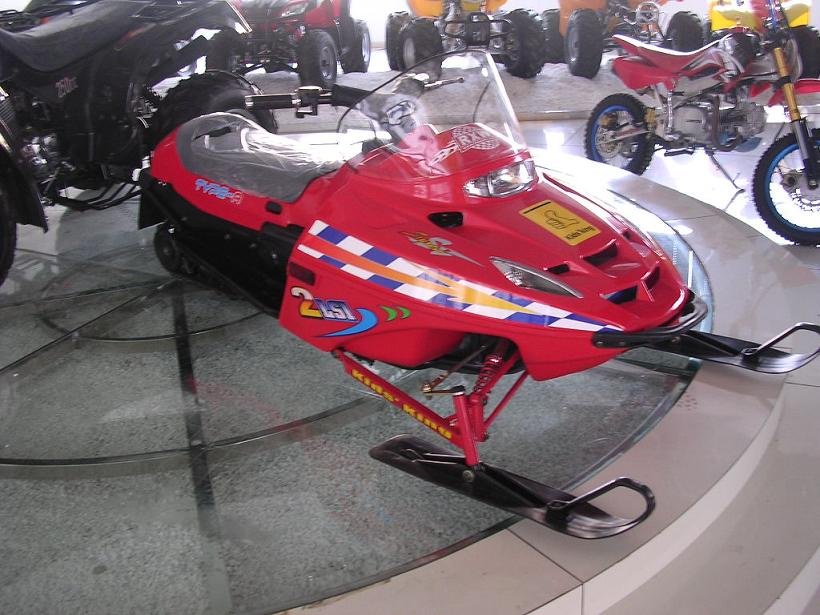

125cc / 170cc Snowmobile (FX-170)
| Price: | Negotiable |
|---|---|
| Trade Terms: | by sea |
| Min Order: | 1 |
Specifications
| Prod Model: | FX-170 |
|---|
Product Description
Art. NO.: FX-1701) Engine type: P152 QMI
2) Displacement: 125cc
3) Exterior size: 2,050 x 920 x 780mm
4) Ground clearance: 100mm
5) Dry weight: 90kg
6) Brake type: drum
7) Fuel type: 95#
8) Fuel capacity: 1.7L
9) Oil type: 5W/30
10) Crankcase oil capacity: 850ml
11) Gear case oil type: G L-5
12) Gear case oil capacity: 100ml
13) Battery capacity: 12V-9Ah
14) Fuse spec.: 6A
15) Head lamp spec.: 12V/20W
16) Turning lamp spec.: 12V/5W
17) Stop lamp spec.: 12V/3W
18) Brake distance (max. speed): <10m
19) Min. fuel consumption: <5L/100km
20) Max. payload: 75kg
21) Min. swerving radius: 5m
22) Max. speed: >20km/h
23) Climbing ability: >12
24) Max. sound level: <80dB(A)
25) Idling emission:
a) CO>4.0%
b) HC<1000ppm
Outer packing:
Carton dimensions (L x W x H) (mm): 1,790 x 880 x 705
N.W.: 76kg
G.W.: 96kg
Conveyance:
Qty/20' FCL: 27pcs
Qty/40' FCL: 54pcs
