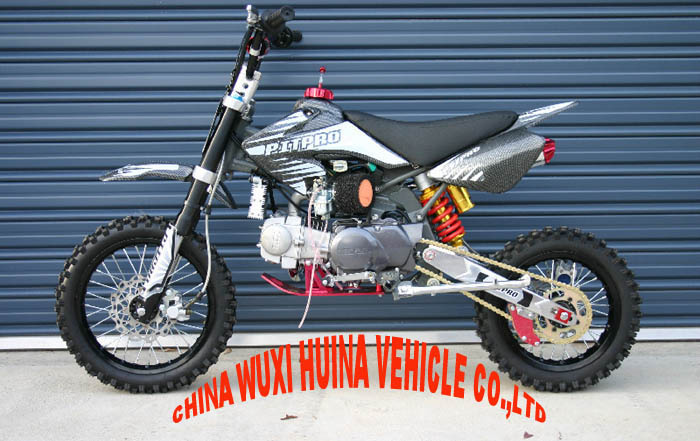

125cc/138cc Lifan Oil Cooled Dirt Bike (HN-NP02)

Specifications

Prod Model:	HN-NP02

Product Description

This bike is powered by a genuine LIFAN 138cc engine, with a heavy duty manual clutch with an all gears up gearbox configuration (N1234).

Bike Specifications
Colour: CARBON FIBRE
Frame Revolutionary Chromolly twin pipe extended Chromolly frame
Swing Arm Pro Link Alloy rear swing arm
Front Suspension Adjustable nitrogen reservoir rear shock absorber
Rear Suspension Adjustable air cell rear shock absorber
Rear Wheel rim with alloy hub assembly. Heavy duty spokes (32). High tensile chromolly axles. MX knobby tyres, 12" Inch.
Front Wheel rim with alloy hub assembly. Heavy duty spokes (32). High tensile chromolly axles. MX knobby tyres,14" Inch.
Handle bars Alloy handle bars
Handle bar grips Half waffle design soft grips
Controls Alloy brake & clutch levers
Triple clamps Silver alloy tripple clamp assembly
Front brake Front hydraulic disc brakes, wave rotors, braided lines
Rear brake Chromolly brake pedal. Front hydraulic disc brakes, wave rotors, braided lines
Foot peg Chromolly reinforced foot peg mount, alloy foot pegs
Body specs CRF style plastics, 3M decal kit, tall foam mx seat
Exhaust and muffler 28mm alloy exhaust system
Maximum load 100kg
Maximum speed 100km/h (depends on rider weight, and conditions)
G.W./N.W. 78/63kg
Seat height 750mm
Wheel Base: 13600mm
Fuel capacity 3L
Other features Alloy gear lever, chrome fuel cap, KMC chain

Engine Specifications
Engine Model Genuine Lifan OIL COOLED
Engine Type Single cylinder, 4 stroke, oil cooled, horizontal cylinder
Brand Lifan
Compression Ratio 9.0:1
Maximum Output KW/HP 7.4KW, 10.00HP (7500 +/- 500r/min)
Maximum Torque NM 8.6 (5500 +/- 500r/min)
Idle Speed 1500 +/- 500r/min)
Starting System Kick only
Clutch Type Wet multi plate
Transmission Gear Type 4-speed Manual, all gears up, N1234
Carburetor: MIKUNI 25mm
Ignition CDI
Fuel Type High grade Unleaded (95 or higher)
Spark Plug Type/Gap NGK CR7HSA
Engine Oil Grade Non synthetic 10W/40SF 4-stroke oil
Engine Oil Capacity 1100ml
Magneto Type Electronic flywheel

Container 20FT/40HQ: 62/144UNITS
