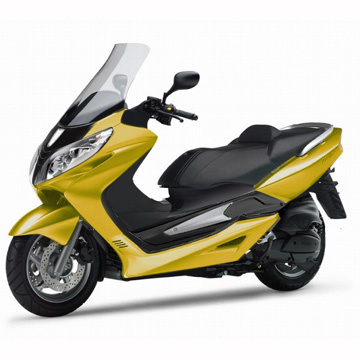

125/150/250CC Scooter(FM125E-36)

Specifications

Prod Model:	FM125E-36

Product Description

125CC FM125E-36
Engine type 152QMI, 124.6cc, four-stroke, air-cooled
Bore *Stroke 52.4 mm * 57.8 mm
Compression ratio 9.2 : 1
Max. Power 5.6 kw at 7500min
Max. Torque 7.8 Nm at 6500 min
Carburetion Honling, PD24K
Ignition CDI
Transmission V-belt, CVT-automatic
Brakes / Front 220 mm Disc hand control
Brakes / Rear 180 mm Drum hand control
Tire size / Front 130/60-13 KENDA and CHENGSHIN
Tire size / Rear 130/60-13 KENDA and CHENGSHIN
Wheel Material Aluminium alloy
Muffler Material Armor plate
Length 2140 mm
Width 780 mm
Height 1200 mm
Seat Height 800 mm
Wheelbase 1535 mm
Dry Weight 168 kg
Battery capacity 12V-9Ah YUASA and PRESIDENT
Fuel capacity 11 L
Color Red, Blue, Yellow, Black, Silver
