Specifications
Prod Model: |
DTR-7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Dtr-7 |
Seat: |
Comfortable |
Transmission: |
Chain |
Brake: |
Disc/Disc |
Load Capacity: |
100-200kg |
Climbing Capability: |
8?? |
Accessories: |
Basket |
Certification: |
CE |
Folded: |
Unfolded |
Product Description

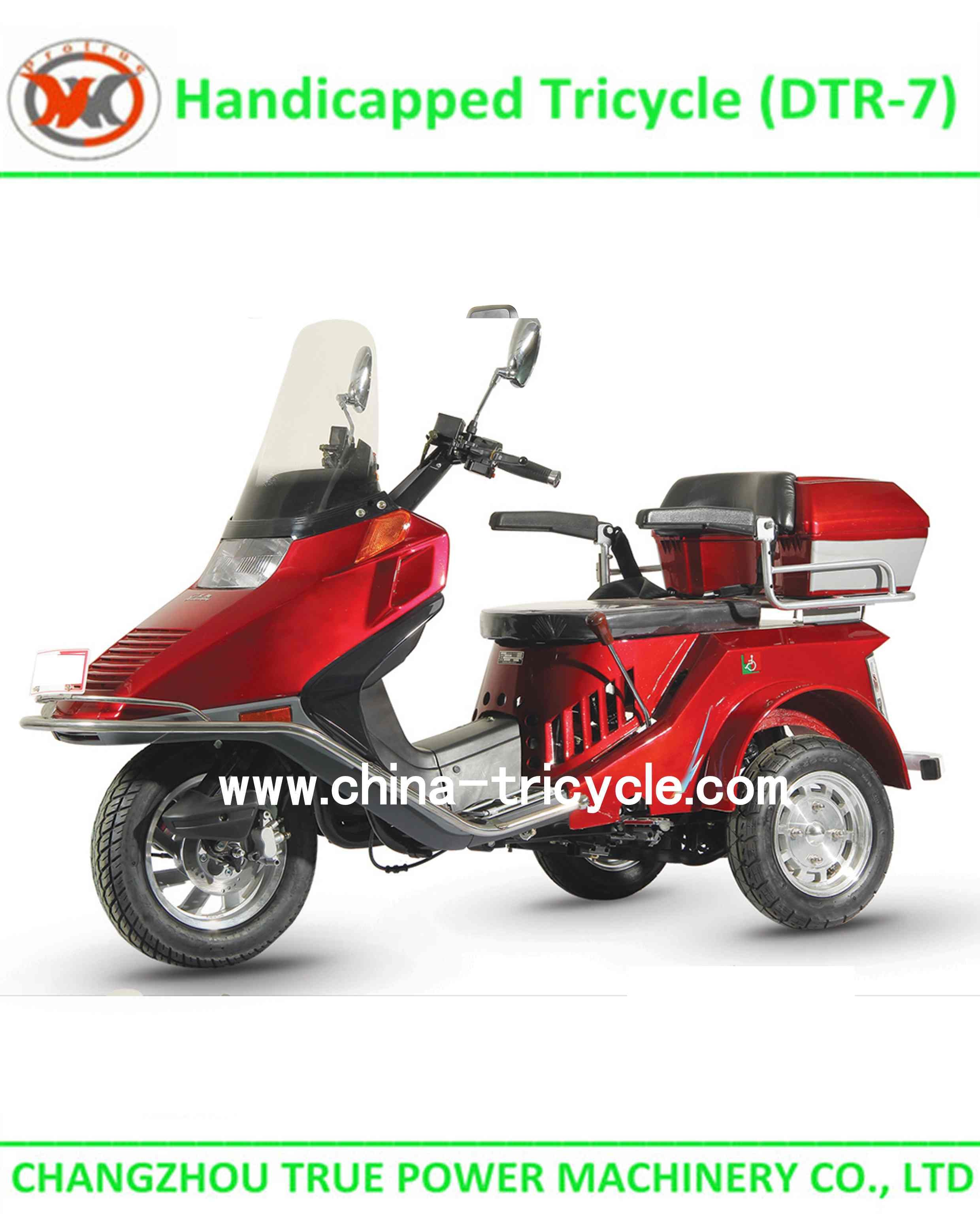

110cc Single Seat for Handicapped and Disabled Scooter (DTR-7)Disabled Scooter
Tricycle for handicapped
Disabled tricycle
Comfortable seat
Guaranteed safety system
Nice designDimension L*W*H( mm): 2000*800*1100
Engine Displacement (ml): 70/110, four stroke, single cylinder
Oil Consumption (L/100KM): 2.5
Wheel Base (mm): 1375
Track(mm): 675
Whole Weight (kg): 146
Max Load(kg): 150-200
Tire Size: F/R 3.50-10
Fuel tank Capacity(l): 5
Brake System: F/R Disc Brake
Transmission mode: Chain
Max Speed(km/h): 45-60
Start Way: Electric /Hand
Package and loading; 20FT/40HQ 14/39UNITS SKD (STEEL FRAME+CARTON)
Dimension L*W*H( mm) | 2000*800*1100 |
Engine Displacement (ml) | 70/110 ,four stroke ,single cylinder |
Oil Consumption (L/100KM) | 2.5 |
Wheel Base (mm) | 1375 |
Track(mm) | 675 |
Whole Weight (kg) | 146 |
Max Load(kg) | 150-200 |
Tire Size | F/R 3.50-10 |
Fuel tank Capacity(l) | 5 |
Brake System | F/R Disc Brake |
Transmission mode | Chain |
Max Speed(km/h) | 45-60 |
Start Way | Electric /Hand |
20FT/40HQ | 14/39UNITS SKD (STEEL FRAME+CARTON) |
