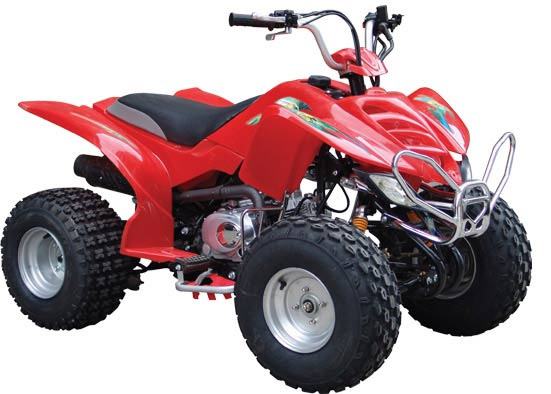

110cc QUAD/ATV with CE (FST-110)

Specifications

Prod Model:	FST-110

Product Description

We are professional manufacture of various of scooter, like atv, dirt bike, pocket bike. This year, fitness have been put into production, you are welcome to enquiry!

Engine type: 4-stroke, single cylinder, air-cooled, full-automatic
Ground clearance: 100mm/140mm
Wheel base: 1130mm/985mm
Steering bar angle: >=15
Front brake type: Mechanical drum
Rear brake type: Hydraulic disc
Tire size (front/rear): 19*7-8/18*9.5-8
Compression ratio: 9.1: 1
Fuel tank cap: 7 8L/5L
Max. Power: 5.6kw/7000r/min/5.0kw/7000r/min
Max. Torque: 9.0 N. M/5500r/min/8.2 N. M/7000r/min
Idle speed: 1600r/min/1600+-100r/min
Start mode: Kick
Clutch: Dry & centrifugal
Spark plug type: C7HSANCK
Engine oil cap: 0.9L
Engine oil: 15W/40-SE
Oil pump: Inner-outer rotor type
Magneto: Permanent magnetic
Lubrication: Press/splash
Max speed: 50km/h
Displacement: 106ml
Ignition: CDI
Product size(mm): 1620*830*1050
Container: 63pcs/40'HQ
