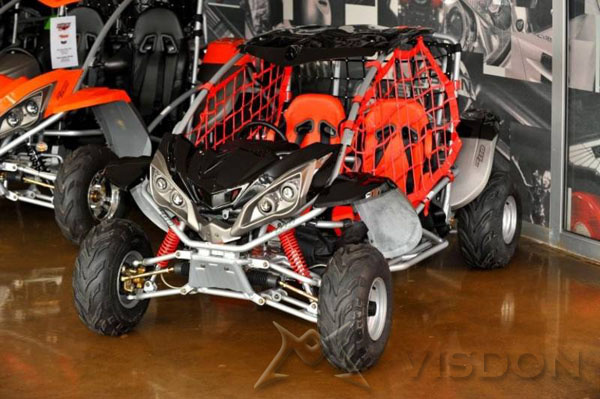

110CC Loncin Mini Buggy With Shaft Drive (SWIFT 110)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
|---|---|
| Start-up: | Electric |
| Transmission: | Shaft |
| Displacement: | 100CC |
| Certification: | EEC |
Product Description
Kid Buggy LONCIN - 110CC Loncin-Powered Mini Buggy With Shaft Drive (SWIFT 110 / GK110)FEATURE
110CC Loncin-powered, air-cooled
Power 4.6KW, torque 6.9N. M
Shaft drive
Hydraulic discs
SPECIFICATIONS
Engine Type: 110CC, air cooled, single cylinder, 4-stroke. Loncin powered
Bore x stroke: 52.4x49.5mm
Compression: 8.6: 1
Rated power: 4.6kw/7500rpm
Maximum torque: 6.9N. M/5000rpm
Driving: Shaft
Max speed: 40km/h
Clutch: Automatic, Centrifugal, Dry, Shoe Type
Ignition: CDI
Brakes (front/rear): Hydraulic Discs, Foot Control
Battery: 12V 3AH
Tank capacity, L: 4.5L
Front tyres: 19x7-8
Rear tyres: 18x9.5-8
NW/GW: 160kg/200kg
Qty/container: 18PCS/20FT; 48PCS/40HQ
OA dimensions: 2055*1240*1174mm
Wheel base, mm: 1598mm
Front track: 1062mm
Rear track: 1035mm
Ground clearance: 235mm
Dry weight: 160kg
Minimum turning radius: 3.5m
