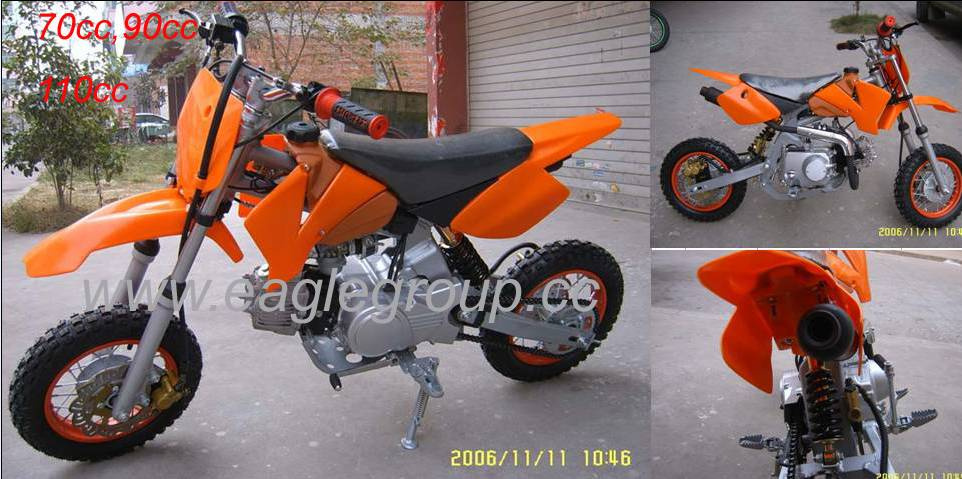

Home Eagle Industry and Trade Co., Ltd. 110cc EPA Dirt Bike (YG-D39)
| Prod Model: | YG-D39 |
|---|
Product Description
It is Copy of KTM, 4 strok air cooledEngine Type: Single cylinder, 4 stroke, air-cooled, 50cc/70cc/110cc
Cylinder Arrangement: Horizontal Single
Final Drive: Chain drive
Bore x Stroke(mm): 39 x 41.4
Piston Displacement(cc): 50cc/70cc/110cc
Compression Ratio: 10.0: 1
Max. Power(kw/r/min): 2.2/7000(50cc)
Max. Torque(N. M/r/min): 3.2/5000(50cc)
Max. Power(kw/r/min): 5.2/8500(110cc)
Max. Torque(N. M/r/min): 6.2/5500(110cc)
Starter Sytem: Electric&kick start
Trasmission: 4 speed
Overall LxWxH(mm): 1330 x 610 x 875
Packing Dimesion LxW xH (mm): 1250 x 380 x 770
Wheel Base(mm): 990
Wheel Rim(front/rear): Wire spoke, 10-2.75, alloy rim
Seat Height(mm): 630
Ground Clearance(mm): 210
Brake(Front/Rear): Front/rear disc brake
Tire, Front: 10"
Tire, Rear: 10"
Ignition Type: CDI
Fuel Tank Capacity (L): 3
Engine Oil Capacity(L): 1.1
Fuel Consmption: <=1.9L/100km
Front suspension: Front telescopic fork
Rear suspension: Rear mono shock
Max Speed(km/h): >65KM/H
Max. Load Capacity(kg): 95
NW(kg): 62
GW(kg): 67
Quantity of Loading: 78pcs 20'ft; 148pcs 40'ft
