Specifications
Prod Model: |
YHXA302 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Maximum Speed: |
<50 km/h |
Fuel: |
Gas / Diesel |
Certification: |
CE |
Transmission System: |
Chain Drive |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Transmission Type: |
Automatic |
Displacement: |
110CC |
Brake Type: |
F/R: Drum/Dice |
Product Description

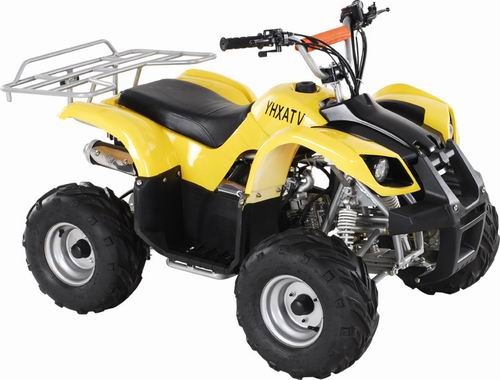

110CC ATV
Art. No.: YHXA302
Engine
1. Type: 4-Stroke, Single cylinder, Air-cooled
2. Displacement: 110CC
3. Bore x Stroke (mm): 52.4x49.5
4. Compression Ratio: 8.8: 1
5. Drive system: Chain
6. Start system: Electric
7. Ignition: CDI
8. Max Speed (km/h): 43
9. Max Power KW(r/min): 4.6/7500
10. Max Torque N. M(r/min): 6.4/5500
Chassis
11. Suspension / Front & Rear: Spring shock absorber
12. Brake / Front & Rear: Double Drum/Single Disc
13. Tires / Front & Rear: 16X8-7 / 16X8-7
14. Rated load(kg): 100
Product Size
15. LxWxH (mm): 1450x900x940
16. Seat Height (mm): 600
17. Ground Clearance (mm): 160
18. Wheelbase (mm): 850
19. Fuel Capacity (L): 2.2
20. Wheel tread(F/R)(mm): 740/600
Packaging
21. G. W. /N. W. (kg): 98/84
22. Carton size(mm): 1240x760x630
23. Container load: 40'HQ: 112PCS
