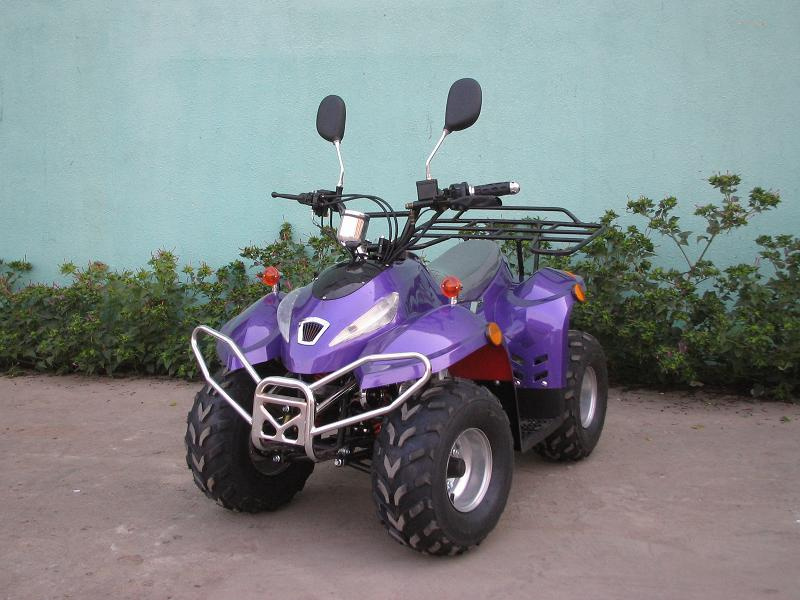

110cc ATV (GS-BEST-30)

Specifications

Prod Model:	GS-BEST-ATV30

Product Description

ATV 110CC GS-BEST-30
1.ATVEngine Type:110cc stepless engine
2.ATVSource of Engine:China Huazhong Motor factory
3.ATVTransmission System:Stepless
4.ATVMax power:4.2/7, 000 kw/r/min
5.ATVMax torque:4.8/6, 500 N.M./r/min
6.ATVStarting System:Key Switch in position, and electric start
7.ATVTransmission:By chain
8.ATVClutch Mode:Automatic
9.ATVSeat Height (mm):600mm
10.ATV-Min Turning Radius (mm):1400mm Ground Clearance:110mm
11.ATVBrake (Front/Rear):Rear hydraulic disc brake
12.ATVDriving mode:Back wheel driving
13.ATVClimbing ability:30 degrees
14.ATV-Average consumption:
15.ATVFront Suspension:Dual A-arm
16.ATVRear Suspension:Monoshock swing arm
17.ATVParking Brake:Mechanical Lock
18.ATVBattery Specification:12V/7Ah
19.ATVMax Load Capacity(kg):200Kgs
20.ATVEngine Oil Capacity(L):0.0497
21.ATVLubrication:Oilinjection
22.ATVCompression Ration:7.8:1
23.ATVNumber of Wheeler driven:Two rear driving wheels and two front 24.ATVclimbing wheels
25.ATVPacking Disassembly parts:Front handle and Front humper
26.ATVN.W/G.W:76/85kg Max speed:55km/h
27.ATVLoading capacity:
36 ATVpieces ATVPer 20Ft container
80 ATVpieces ATV Per 40Ft container
