Prod Model: |
AT0528 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Torque: |
4.2nm/5000rpm , 4.2nm/5000rpm, 5.2nm/5000rpm, 5.5n |
Max Power: |
3.0kw/8500rpm/ ,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/ |
Ignition Type: |
Cdi |
Transmission: |
4-Speed,Semi-Automatic Reverse |
Starting System: |
Electric Start |
Battery Spec: |
12V,9ah |
Front Suspension Details: |
:Double a X Swing Arm |
Rear Suspension Details: |
Mono Shock Swing Arm |
Front Tire Spec: |
235/30-12 |
Vehicle Dimensions: |
190X110X103cm |
Transmission System: |
Chain Drive |
Transmission Type: |
Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
110CC |
Structure: |
Without Door |
Maximum Speed: |
>75 km/h |
Brake Type: |
Disc Brake |
Product Description

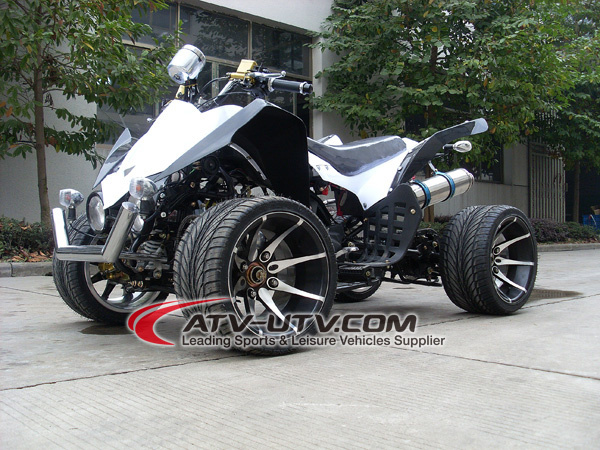

110cc/125cc racing 4 wheel quad bike
AT0528-A
1. Engine type: 110CC
2. Max torque: 4.2Nm/5000rpm, 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
3. Max power: 3.0Kw/8500rpm/, 3.0kw/7500rpm, 3.3kw/7500rpm, 3.6kw/7500rpm,
4. Ignition type: CDI
5. Transmission: 4-speed, semi-automatic reverse
6. Brake (Front/Rear): Disc/Disc
7. Starting system: Electric start
8. Battery spec: 12V, 9AH
9. Front suspension details: Double A x swing arm
10. Rear suspension details: Mono shock swing arm
11. Front tire spec: 235/30-12. Rear tires spec: 235/30-12.
12. Vehicle dimensions: 190x110x103cm
13. Wheel base: 1300mm
14. Seat height from ground: 63cm
15. Ground clearance: 80mm
16. Load capacity: 150kg
17. Fuel tank capacity: 5L
Package:
1. Net weight: 140kg
2. Gross weight in carton: 160kg
3. Carton size: 150x83x71cm
4. Container: 30pcs/20', 63pcs/40', 65pcs/40'HQ
