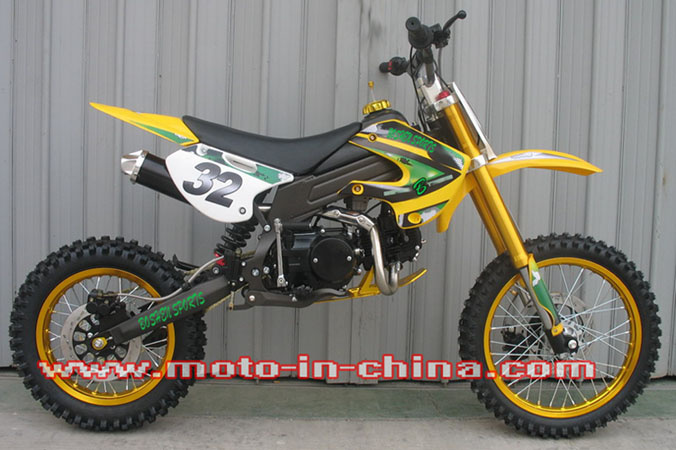

110cc,125cc Dirt Bike (BON-DB125-3)

Specifications

Product Description

Engine Type 110cc/125cc 4-Stroke single cylinder air cooled
140cc oil cooled, it can start in any gear
Bore & Stroke 54x 54mm9(110cc/125cc)
55x59mm (140cc)
Starter Kick Start

Compression Ratio 9.2:1 (110cc/125cc)
9.0:1 (140cc)
Transmission Manual: 5-speed, International shift pattern
Final Drive Chain
Max Power 6. 5kw / 8500r / Min (110cc/125cc)
8kw/7500r/min (140cc)

Front shock Adjustable Inverted hydraulic shock
Rear shock Adjustable Air bag shock absorption (made in Taiwan)
Brakes Front & Rear Hydraulic Disk
Seat Height 17" front and 14" rear: 80cm
14" front and 17" rear: 75cm
Wheel base 125cm
Ground Clearance 17" front and 14" rear fire: 380mm
14" front and 12" rear tire: 320mm
Front & Rear wheel 1) Front: 2.5-14"; Rear: 3.00-12"
2) Front: 2.5-17"; Rear: 3.00-14"
Engine and Rear Sprocket 16 / 43 tooth
Length / Width / Height 1)17" front and 14" rear 182x80x106cm
2)14" front and 12" rear 170x800x98cm
Package Size L / W / H 154 x 43 x 71cm
Tank Capacity 3ltr.
G. W. / N. W. 96kgs / 86.5kgs
Colors Black, Red, Green, Blue, Yellow, carbon looking
Conveyance 20' Ft Container: 53pieces
40' Ft Container: 117pieces
40' Ft HQ Container: 133pieces
