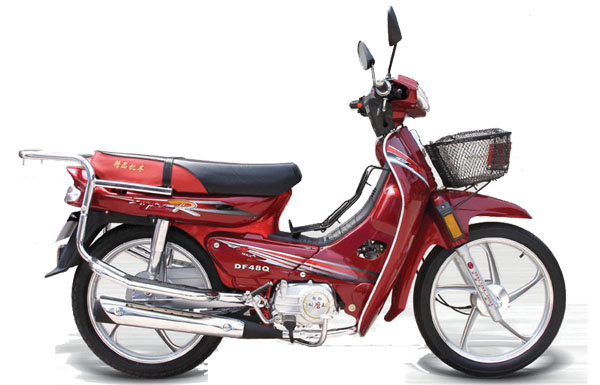

110CC-125CC CUB

Specifications

Product Description

Dimension ((L× B× H mm): 1895*620*1042
Wheel base (mm): 1270
Min. Ground Clearance (mm): 180
Dry Weight: 105kg
Height Of Seat (mm): 778
Fuel Tank Capacity(L): 5.0
Engine Type: Single-cylinder, air-cooled, four-stroke
Engine model: 1P52FMH
Bore× Stroke: 52.4mm*49.5mm
Displacement: 107ml
Maximum Net Power: 4.6kw/7500r/min
Maximum Torque: 6.9N. M/5000r/min
Clutch: Wet multi-plate
Lubrication: Pressure/splash
Start: Kick start/electric start

Ignition: C. D. I
Transmission: 4 gear
Max. Speed (km/h): 80km/h
Economical Fuel Consumption (l/100km): ≤ 2.1L/100Km
Front Type Size and Air Pressure: 2.50-17/175KPa
Rear Type Size and Air Pressure: 2.75-17/200KPa
Climbing Ability (° ): ≥ 18°
Exhaust Index: CO≤ 3.8%; HC≤ 800ppm
Start Performance: ≤ 15s
Braking system (front/rear): Disk
Brake Performance: ≤ 7m/30km/h
Package size: 1680*450*830
Package way: Carton + foam or iron or wood
Qty of 20'/40HQ' container: Carton package 50PCS/105PCS
