Specifications
Prod Model: |
ZC-ATV-16 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tires: |
7 Inches |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
110CC |
Transmission System: |
Chain Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
50-75 km/h |
Certification: |
CE |
Product Description

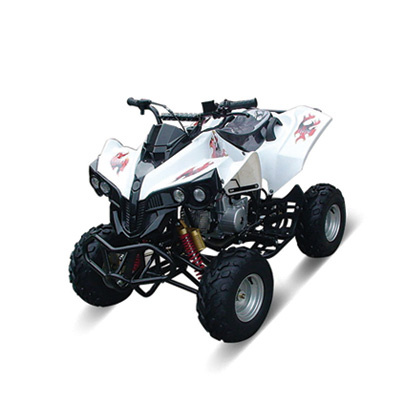

ZC-ATV-16
Engine: 110CC/125CC, single-cylinder, four-stroke
Promise speed (or third gear with the forward back a file R-0-1-2-3-)
Ground clearance: 150mm
Maximum load: 120kg
Front wheel size: 16X8-7 Rear Size: 16X8-7
Front and rear wheelbase: 980mm
Two front-wheel distance: 800mm
Two rear-wheel distance: 720mm
Seat height: 760mm
Startup methods: Electric start
Fuel tank capacity: 3.5L
Battery: 12V 5Ah
Transmission mode: Chain drive
Maximum speed: 60km / h
G. W. /N. W.: 120kgs/105kgs
Dimensions: 150X102X94cm
Packing size: 148X84X72cm
Qty: 33PCS/20FCL, 66PCS/40FCL
Art No: | ZC-ATV-16/16A |
Engine type: | 4 stroke,1-cyclinder,Air-cooled |
Engine brand: | ruixiang(chongqing) |
final drive: | Chain drive |
transmission type: | automatic 3 gears with forward back a file R-0-1-2-3 |
Displacement: | 125CC |
Fuel: | Gas |
starting: | Electric |
Ground clearance: | 150mm |
Max Speed: | ≥60km/h |
front wheel: | 16*8-7 |
rear wheel: | 16*8-7 |
Brake: | front drum brake,rear hydraulic disc brake |
Battery : | 5AH/12V |
oil Tank : | 3.5L |
Net/Gross weight : | 105kgs/120kgs |
ATV size: | 150*102*94cm |
Carton dimensions: | 148*84*72cm |
container: | 33pcs/20FCL, 66pcs/40HQ |
MOQ: | 5pcs |
Port: | Ningbo |
cetification: | CE |
Color: | Blue,black,red,yellow..optional |
Packaging Details: | iron cage with carton outside |
Delivery Detail: | 20-40days |
Payment Terms: | T/T(30% in advance ,70% After B/L copy) |
