Home FUSIM GROUP CO., LIMITED 110/125cc Utility Racing ATV

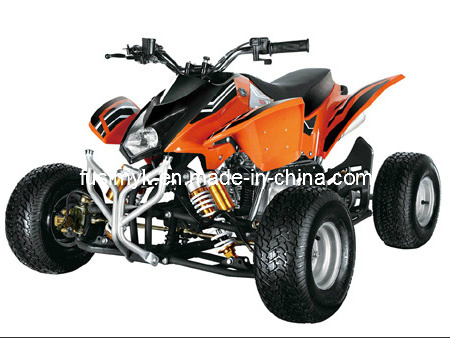

110/125cc Utility Racing ATV
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 30/Piece |
| Pay Type: | L/C,T/T,D/P |
Specifications
| Prod Model: | FXATV110-SC-1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Art No.: | Fxatv110-Sc-1 |
| Engine: | 4-Stroke, 1-Cylinder, Air-Cooled |
| Net/Gross Weight: | 85/105kgs |
| Color: | Many Colors for Your Choice |
| ATV: | Air-Cooled ATV |
| Order: | Min Order |
| Package: | Strong Packing |
| Product Size: | 1320*1040*740mm |
| Transmission System: | Chain Drive |
| Certification: | ISO9001 |
| Engine Type: | 4 Stroke |
| Fuel: | Electric |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Transmission Type: | Electric |
| Displacement: | 110/125 |
| Brake Type: | Hydraulic Brake/ Hydraulic Brake |
Product Description
110/125cc utility racing ATVArt No.: FXATV110-SC-1
1. Engine Type: 4-stroke, 1-cylinder, air-cooled
2. Displacement: 110cc(optional: 125cc)
3. Max power: 5.2/8500rpm
4. Max torque: 6.7/6000rpm
5. Starting: Electric
6. Ignition: C. D. I
7. Lubrication: Pressure and Splash
8. Compression Rate: 9.1: 1
9. Transmission: Automatic with reverse
10. Final Drive: Chain
11. Front/rear Brake: Hydraulic disc/hydraulic disc
12. Max Speed: 65Km/h
13. Fuel Capacity(liter): 2.5L
14. Battery: 12V4Ah
15. Wheel Base: 950mm
16. Front/rear Tire: 15*6-6/15*6.0-6
17. Mini ground Clearance: 85mm
18. Seat Height: 600mm
19. Wheel Base: 950mm
20. Net/Gross weight: 85/105kgs
21. Capacity Weight: 65kgs
22. Product Size: 1320*1040*740mm
23. Carton size: 1230*770*640mm
24. Container: 108PCS/40'HQ
