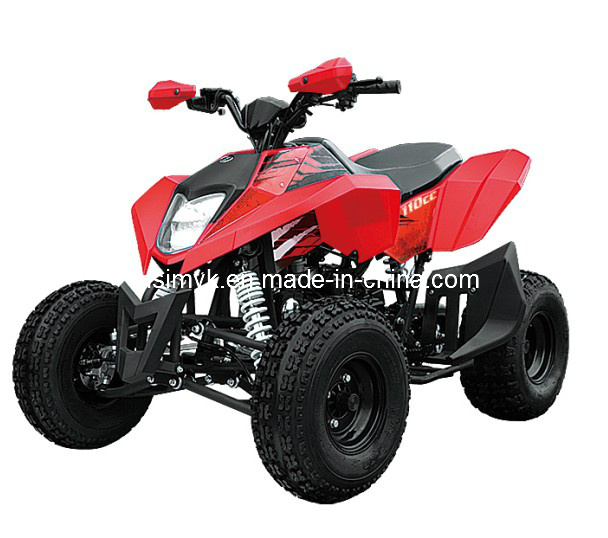

110/125cc 4-Stroke off-Road Vehicle ATV (FXATV-002A-110FZ)
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 30/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | FXATV-002A-110FZ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Art No.: | Fxatv-002A-110fz |
| Engine: | 4-Stroke, 1-Cylinder, Air-Cooled |
| Net/Gross Weight: | 129/156kgs |
| Product Size(Mm): | 1650X1050X1050 |
| Color: | Many Colors for Your Choice |
| ATV: | Air-Cooled ATV |
| Order: | Min Order |
| Package: | Strong Packing |
| Transmission System: | Chain Drive |
| Certification: | ISO9001 |
| Engine Type: | 4 Stroke |
| Fuel: | Electric |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Transmission Type: | Electric |
| Displacement: | 110/125cc |
| Brake Type: | Hydraulic Brake/ Hydraulic Brake |
Product Description
110/125cc 4-stroke off-road vehicle ATVArt No.: FXATV-002A-110FZ
1. Engine Type: 4-stroke, single cylinder, air-cooled
2. Displacement: 110cc (Optional: 125cc)
3. Max power: (kw/rpm): 5.0/8000
4. Max torque(Nm/rpm): 6.7/6000
5. Starting: Electric
6. Ignition: CDI
7. Compression Rate: 9.7: 1
8. Transmission: 3-speed, automatic clutch with reverse inside
9. Final Drive: Chain
10. Front/rear Brake: Hydraulic disc brake/ hydraulic disc brake
11. Max Speed (Km/h): 60
12. Fuel Capacity(liter) L: 7
13. Battery: 12V, 6.5Ah
14. Wheel Base (mm): 1050
15. Front/rear Tire: 19X7-8/18X9.5-8
16. Seat height (mm): 765
17. Mini ground Clearance (mm): 100
18. Net/Gross weight (kgs): 129/156
19. Product size(mm): 1650X1050X1050
20. Capacity Weight (kgs): 135
21. Product size(mm): 1560*1050*1050
22. Carton size(mm): 1430X900X855
23. Container: 20PCS/20GP, 63PCS/40HQ
