Home Orientex Engineering Co., Ltd. 1000cc Water-Cooled 38.5kw Go Kart /EEC Go Kart

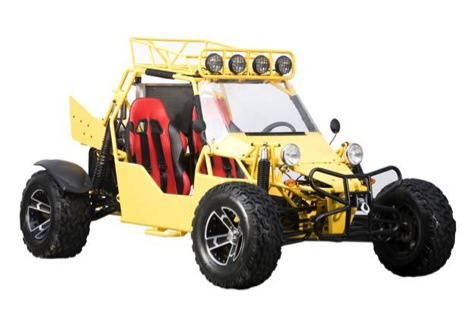

1000cc Water-Cooled 38.5kw Go Kart /EEC Go Kart
| Price: | US $ 5820/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Prod Model: | KQkart001D |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission: | Shaft |
| Start-up: | Electric |
| Certification: | EEC |
| Displacement: | 1000cc |
| Maximum Speed: | 85 Km/H |
Product Description
SpecificationsWater-cooled EFI 38.5KW/52HP 970cc engine go kart
Available 2seats/4seats
Available 1100cc engine.
Manual 2WD
--1000cc 2WD shaft drive go kart,
--water-cooled EFI 38.5KW/52HP engine
--manual gears drive with reverse, disc brake. 14"alloy rims standard state.
--EPA approved
--available 2seats/4seats
Go kart options:
Windshield
CD player and horn
Tail ball
Front mudguard
Front bumper
3000LBS winch
Right hand drive
5 forwards speeds with reverse, 1100cc Chery engine
| specification: | |||||
| ENGINE | |||||
| Engine type | EFI-DELPHI Electric start | ||||
| Bore*stroke | 65.5x78.0mm(2.6x3.1in) | ||||
| Displacement | 970cc | ||||
| Horse Power | 38.5kw 52HP | ||||
| Compression ratio | 8.8:1 | ||||
| FUEL SYSTEM | |||||
| Choke System | Water-cooled | ||||
| Fuel capacity | 36L(9.36gal) | ||||
| DRIVETRAIN | |||||
| Driveline Type | 2WD | ||||
| Gear Selection | 4 forwards speeds with reverse | ||||
| Final Drive | shaft | ||||
| SUSPENSION / BRAKES | |||||
| Suspension Front | Independent double wishbone | ||||
| Suspension Rear | Independent double wishbone | ||||
| Brakes Front | Disk | ||||
| Brakes Rear | Disk | ||||
| TIRES | |||||
| Front Tread | 1530mm(60.2in) | ||||
| Rear Tread | 1620mm(63.8in) | ||||
| Front & Rear tire size | 27x8-14/27x11-14 | ||||
| MISC | |||||
| Top speed | 85km/h(53MPH) | ||||
| Dry weight | 850kgs(1872.2lbs) | ||||
| Seat height | 560mm(22in) | ||||
| Wheelbase | 3200mm(126in) | ||||
| Vehicle dimension (L×W×H) | 4120 x 1940 x 1300mm | ||||
| Packing size | 3900x1160x1250mm(153.5x45.7x49.2in) | ||||
| Cargo bed load capability | 350kgs(770.9lbs) | ||||
| Steering | Rack&pinion | ||||
| Towing capability | 3776N(850lbf/385kgf) | ||||
| Ground clearance | 300mm(11.8in) | ||||
| Loading information | 2 units/20 ″ ; 8units/40 ″ ; 16 units/40HQ (12units/40HQ 4seats) | ||||
