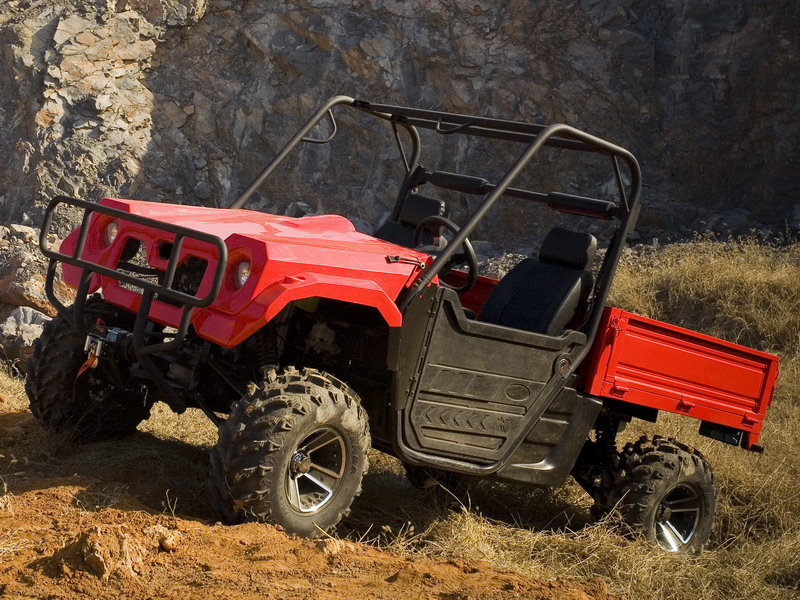

1000CC UTV 4x4 Utility Vehicle With EEC
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 2Units |
| Pay Type: | T/T |
Specifications
| Prod Model: | LANDMAX 1000S EFI |
|---|---|
| Markets: | North America,Eastern Europe,Oceania,Mid East,Western Europe |
| Engine Type.: | 4 Stroke |
| Fuel.: | Gas/Petrol |
| Cooling System.: | Water Cooled |
| Transmission.: | Manual |
| Displacement.: | 1000CC |
| Starting System.: | Electric Start |
| Final Drive.: | Shaft Drive 4wd |
| Certificate.: | EEC & EPA |
Product Description
1000CC UTV 4X4 utility vehicle with EEC-- Water-cooled, 4-Cylinder EFI Engine
-- EEC / EPA / CARB Approved
-- Fully Independent Suspension
-- Shaft Drive, 2WD & 4WD Switch.
| ENGINE | |
| Engine Type | Four Cylinder, 4 Stroke, SOHC |
| Engine Displacement | 970cc |
| Bore x Stroke | 65.5 x 72mm |
| Compression Ratio | 8.8 : 1 |
| Cooling System | Water Cooled |
| Ignition | EFI-DELPHI |
| Maximum HP/ RPM | 35.5Kw/5300 RPM |
| Maximum Ne /RPM | 74N.m/3000-3500 RPM |
| Fuel Capacity | 25L |
| Max Speed | 90km/h |
| Starting System | Electric Start |
| Transmission Mode | H/L 5 Speeds with Reverse |
| Final Drive | Shaft Drive, 2WD & 4WD Switch |
| Battery | 12V 14A |
| Wheels & Brakes | |
| Tyres Front/Rear | 26x12-12 |
| Wheels Front/Rear | 12x9 |
| Suspension Front/Rear | Independent Double Wishbone |
| Brakes Front/Rear | Hydraulic Disc Brake |
| Steering | Rack & Pinion |
| Dimensions & Weight | |
| Cargo Bed (LxWxH) | 1,205 x 1.420 x 310mm |
| Product Dimension(LxWxH) | 3,450 x 1.700 x 1.860mm |
| Carton Dimension(LxWxH) | 3,570 x 1.770 x 1.130mm |
| Cargo Bed Load Capability | 300kgs |
| Towing Capability | 5330N |
| Seat Height | 850 mm |
| Wheelbase | 2,300mm |
| Ground Clearance | 350mm |
| Dry Weight | 730kgs |
| Gross Weight | 826kgs |
| Container Loading | 2 PCS/20GP, 6 PCS/40GP, 6 PCS/40HQ |
| Optional Accessories |
Alloy Wheels Electric Winch Head Roof Front Windshield Half Door |
