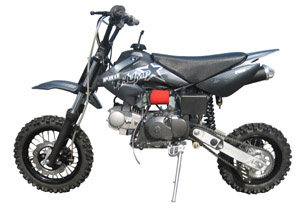

06 Supa Thumpstar-Carbon Fiber Dirt Bike

06 Supa Thumpstar-Carbon Fiber Dirt Bike
Price: Negotiable
Min Order: 34/Piece

Specifications

Prod Model: 06 supa-carbon fiber

Product Description

Engine Specifications:
Engine Model: TMR- 110 / 120
Engine Type: Single cyclinder, 4 stroke, air cooled, horizontal
Bore MM: 52. 4
Stroke MM: 49. 5 / 55. 5
Displacement ML: 107 / 120mll
Compression Ratio: 9. 7: 1 / 9. 0. 1
Max Output KW/HP: 5. 3KW 7. 15 HP (8500+-500r/min) / 5. 8KW 7. 83HP 6. 8nm (7000+-500r/min) /
Max Torque NM: 8. 5nm
Idle Speed (R/Min): 1500+-150
Fuel Type: High Grade Unleaded (90 Unleaded Recommended)
Spark Plug Type/Gap: NGK CR7HSA, 0. 6-0. 8
Engine Oil Grade: 10W/40SF
Starting System Electric/Kick: Electric/Kick
Clutch Type: Wet multi Plate
Transmission Gear Type: 4 Speed manual
Primary Reduction Type: 4. 058
Gear ratio: 1st 3. 181

2nd 1. 705
3rd 1. 238
4th 0. 958
Carburetor: Mikuni Japan 20 to 24mm
Ignition: CDI
Magneto Type: Electronic Flywheel
Engine Oil Capacity: 1100ml

Body Specifications
Overall Length: 1500mm
Wheel Base: 1017mm
Seat Height: 695mm
Handlebar Height: 915mm
Overall Width: 770mm
WheelSize Front/Rear: 10/10, 12/10, 12/12
Dry Weight: 65kg
