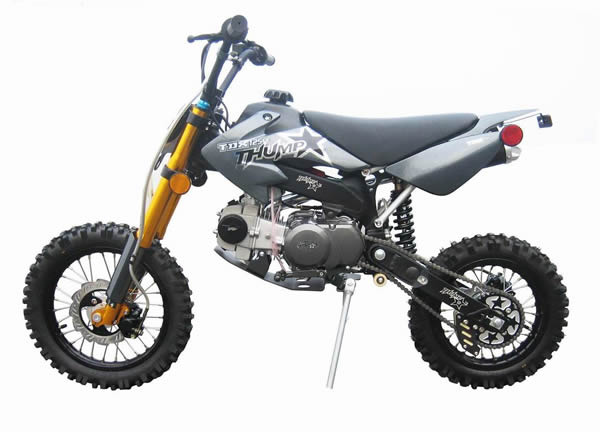

06 Pro Thumpstar Dirt Bike-Carbon Fiber

06 Pro Thumpstar Dirt Bike-Carbon Fiber
Price: Negotiable
Min Order: 1

Specifications

Product Description

Four Stroke 125cc Power Plant;
Flat top racing piston;
Stronger lighter crankshaft;
2 Stage Uni-Pod 'Racing Red' air filter;
3M Genuine Factory Thumpstar graphics;
Spar Frame Alloy Extruded CNC machined available in polished Natural Alloy or Matt Black Finish;
Alloy skid plate;
Braided Brake Lines;
4 Speed Fast Shift Manual Gearbox;
36mm 7005 Grade alloy USD forks (6 inches of Travel);
Wave Rotor front and rear discs;
Billet alloy quick action 1/4 twist throttle;
Free style raiser handlebars;
Alloy billeted handle bar raisers;
Alloy wheels and hubs with heavy duty spokes;
Alloy billet fuel tank cap with billet gas breather;
Alloy wheels and hubs with heavy duty spokes;
Deep sound MX performance exhaust- full billeted tail end;
4 ply Tyres Kings "BOYZEE" with heavy duty tubes;
All new single alloy trailing swingarm

SPECIFICATION:

Engine Specifications:
Engine Model: TDX- 125
Engine Type: Single cyclinder, 4 stroke, air cooled, horizontal
Bore MM: 52. 4
Stroke MM: 57
Displacement ML: 122. 7
Compression Ratio: 9: 0: 1
Max Output KW/HP: 7. 0 KW 9. 45 HP (7500+-500r/min)
Max Torque NM: 8. 6 (5500+-500r/min)
Idle Speed (R/Min): 1500+-150
Fuel Type: High Grade Unleaded (90 Unleaded Recommended)
Spark Plug Type/Gap: NGK CR7HSA, 0. 6-0. 8
Engine Oil Grade: 10W/40SF
Starting System Electric/Kick: Kick Start Only
Clutch Type: Wet multi Plate
Transmission Gear Type: 4 Speed manual
Primary Reduction Type: 4. 058
Gear ratio: 1st 3. 181
2nd 1. 075
3rd 1. 238
4th 0. 958
Carburetor: Mikuni Japan 20 to 24mm
Ignition: CDI
Magneto Type: Electronic Flywheel
Engine Oil Capacity: 1100ml

Body Specifications:
Overall Length: 1500mm
Wheel Base: 1017mm
Seat Height: 760mm
Handlebar Height: 915mm
Overall Width: 770mm
WheelSize Front/Rear: 10/10inch, 12/10, 12/12, 14/12, 14/14
Dry Weight: 65kg
