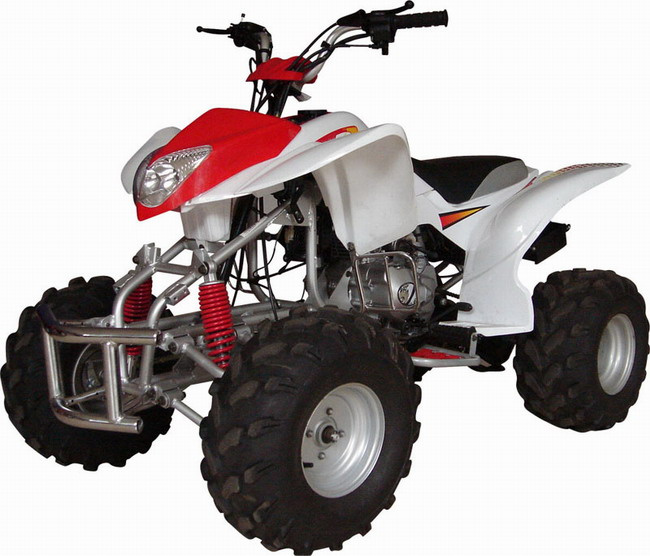

Water-cooling, EEC ATVs (JY200ST-5)

Specifications

Prod Model:	JY200ST-5

Product Description

Dimension (mm) (Length*Width*Height):1740*1120*1140
Engine Type:Single-cylinder;water-cooled,4-stroke
Displacement(ml):197
Power(kw/r/min):10Kw/7500r/min
Maximum Torque(N.m./r/min):13.5N.m/6500r/min
Starting:Electric
Max.speed(km/h:≥70
Transmission:Chain
Brake Type(Front/Rear):Drum/Disc
Tyre size(Front / Rear):F:21*7.0-10 R:20*10-10
Ignition mode:CDI
Wheel base(mm):1150
Fuel tank capacity(L)4
Battery :12V 9Ah
Net weight(kgs):170
Max Loading (kgs):150
20' GP:20PCS
40' GP:44PCS
40' HQ:66PCS
