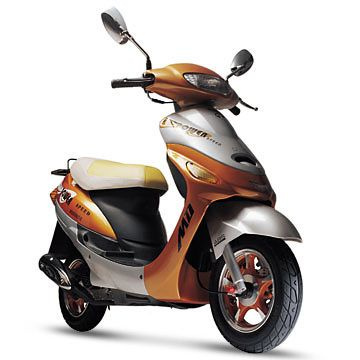

Scooter (TS50QT-3)(EEC&EPA)

Specifications

Prod Model:	TS50QT-3

Product Description

Product Explanation:
L*W*H*(mm): 1670*635*1070
Wheel Base(mm): 1200
Max. Speed(Km/h): 45
Max. Loading Capacity (Kg): 150
Brake System: F/R Disc / Drum
Fuel Tank Capacity (L): 4. 3L
Tire Size / Pressure Front (Kpa): 3. 00-10/200
Tire Size / Pressure Rear (Kpa): 3. 00-10/220
Engine Type: 4-Stroke, Single, Air Cooled
Engine Model: YB139QMB
Bore*Stroke(mm): 39*41. 5
Displacement(CC): 50
Compression Ratio: 10. 5: 1
Max. Power: 2. 5Kw/7000min-1
Max. Torque: 3. 4N. M/7000min-1
Ignition CDI
Starting System: Electric & Kick
Gear Oil Type: SAE 15W-40
Lubrication Type: Pressure / Splash
Max. Noise: 81dB(A)-3500min-1
Clutch Type: Automatic, Centrifugal
Transmission System: Belt
Dry Weight(Kg): 78
Packing: Iron Frame
