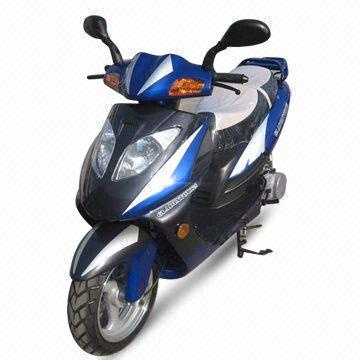

Scooter (TS125T-15A) (EEC&DOT)

Specifications

Prod Model:	TS125T-15A

Product Description

Product Explanation:
L*W*H*(mm): 1985*690*1155
Wheel Base(mm): 1380
Max. Speed (Km/h): 80
Max. Loading Capacity (Kg): 150
Brake System: F/R Disc / Drum
Fuel Tank Capacity (L): 6
Tire Size / Pressure Front (Kpa): 130/60-13/220
Tire Size / Pressure Rear (Kpa): 130/60-13/250
Engine Type: 4-Stroke, Single, Air Cooled
Engine Model: YB152QMI
Bore*Stroke(mm): 52. 4*57. 8
Displacement(CC): 125
Compression Ratio: 9. 2: 1
Max. Power: 4. 6Kw/6500min-1
Max. Torque: 7. 5N. M/5500min-1
Ignition CDI
Starting System: Electric & Kick
Gear Oil Type: SAE 15W-40
Lubrication Type: Pressure / Splash
Max. Noise: 81dB(A)-3250min-1
Clutch Type: Automatic, Centrifugal
Transmission System: Belt
Dry Weight: (Kg) 111
Packing: Iron Frame
EEC: 50cc, 125cc, 150cc
DOT&EPA: 125cc
