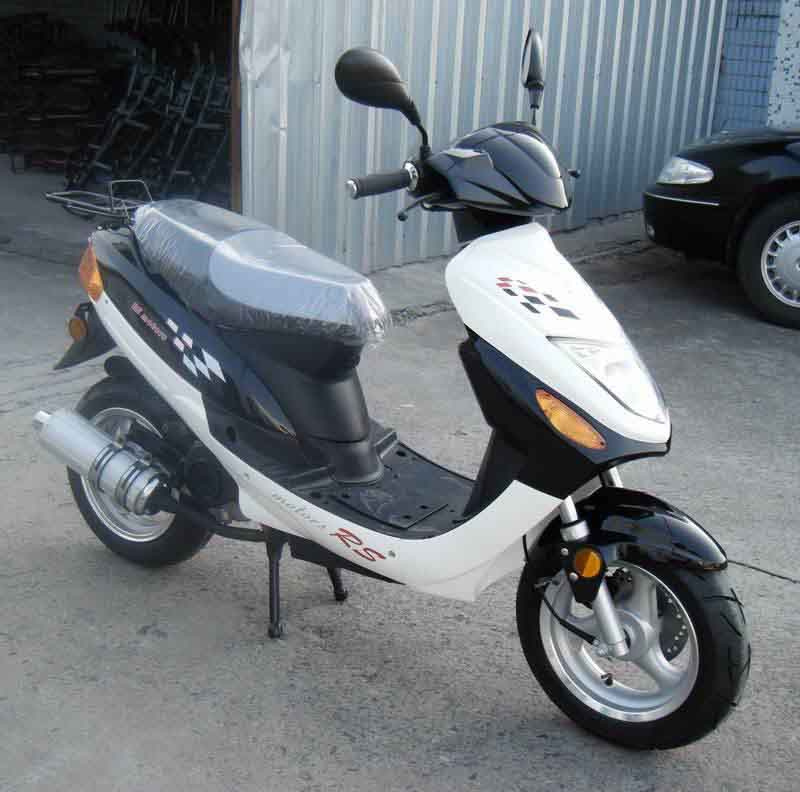

Scooter (JL50QT-5)

Specifications

Prod Model:	JL50QT-5

Product Description

Overall Length(mm): 1670mm
Overall Width(mm): 640mm
Overall Height(mm): 1070mm
WheelBase(mm): 1195mm
Ground Clearance(mm): 110mm
Dry Weight(kg) 80kg
Max. Load Mass(kg): 150kg
Max. Speed(km/h): 45km/h
Tire: Front: 120/70-12 Rear: 120/70-12
Driving Mode: C. V. T
Brake Mode: Front: Disk Rear: Drum
Brake Operation Mode: Front: By Hand Rear: By Hand
Engine: JL139QMB
Engine Type: Single Cylinder Four Stroke
Cylinder Type: Horizontal
Bore X Stroke(mm): Dia. 39 X 41.5(mm)
Piston Displacement: 49.5cc
Compression Ratio: 10.5: 1
Max. Torque(N. M/rpm): 3.0/6000(N. M/rpm)
Lubrication: Compress & Splash Combined Type
Max. Output Power(kw/rpm): 2.3/8000(kw/rpm)
Ignition: C. D. I
Started System: Electric Starter/Kick Starter
Engine Cooling: Forced Air Cooling
Transmission: Stageless Transmission
Clutch: Automatic Centrifugal
Battery: 12V-4AH
Fuel Capacity: 4.5L
Average Consumption: 2.0L/100km
