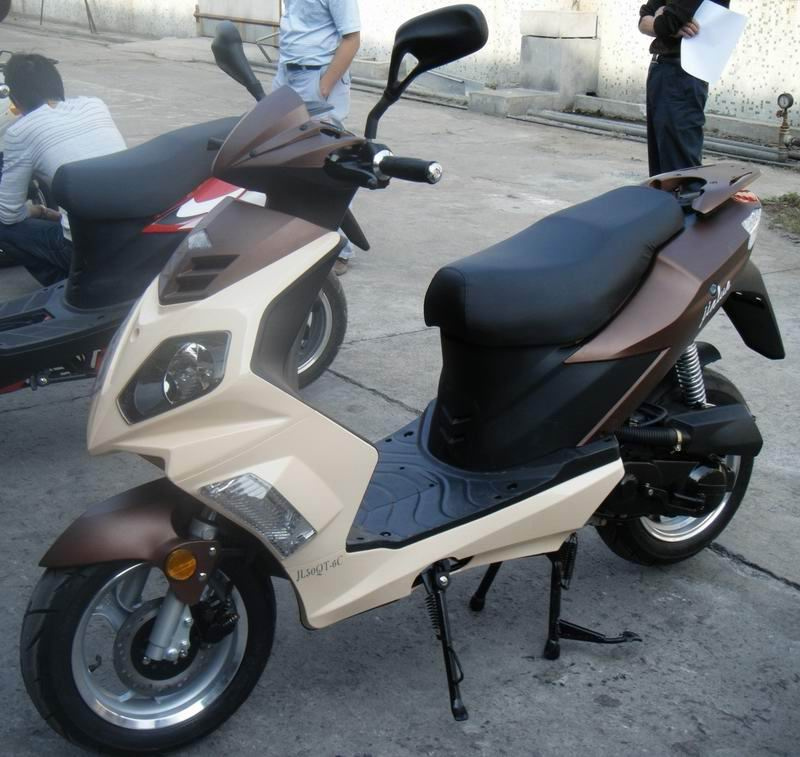

Scooter (JL150-6A)

Specifications

Prod Model:	JL150-6A

Product Description

Overall Length(mm): 1890mm
Overall Width(mm): 670mm
Overall Height(mm): 1155mm
WheelBase(mm): 1260mm
Ground Clearance(mm): 140mm
Dry Weight(kg) 110kg
Max. Load Mass(kg): 185kg
Max. Speed(km/h): 86km/h
Tire: Front: 120/70-12 Rear: 120/70-12
Driving Mode: By Chain
Brake Mode: Front: Disk Rear: Drum
Brake Operation Mode: Front: By Hand Rear: By Foot
Engine: JL157QMJ
Engine Type: Double Cylinder Four Stroke
Cylinder Type: Vertical
Bore X Stroke(mm): Dia. 56.5 X 57.8(mm)
Piston Displacement: 144.9cc
Compression Ratio: 9.5: 1
Max. Torque(N. M/rpm): 8.8/6000(N. M/rpm)
Lubrication: Compress & Splash Combined Type
Max. Output Power(kw/rpm): 8.6/7500(kw/rpm)
Ignition: C. D. I
Started System: Electric Starter
Engine Cooling: Forced Air Cooling
Transmission: automatic
Clutch: Dry type, multi-plate
Battery: 12V-7AH
Fuel Capacity: 6L
Average Consumption: 2.4L/100km
