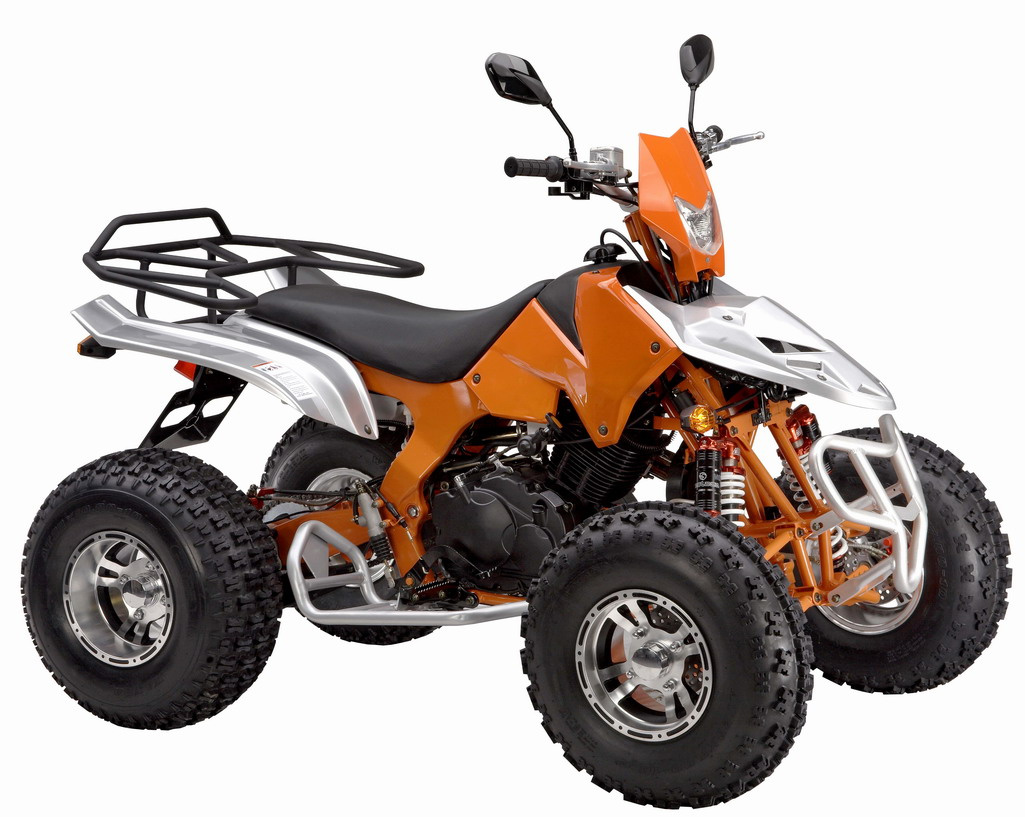

Home Farspeed Vehicle Industry Co., Ltd. Quad Bike, ATV (FPA350E-2)
Specifications
| Prod Model: | FPA350E-2 |
|---|---|
| Certification: | EEC |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Semi-Automatic |
| Displacement: | 300CC |
Product Description
350cc EEC ATVEEC ATV
EEC QUAD
QUAD BIKE
CHINA ATV
| Engine Type: | 183FMP,/single cyliner / Four-stroke /air-cooled / counterbalancer shaft |
| Displacement (ml): | 348 |
| Bore X Stroke (mm): | 83×64.5 |
| Compression Ratio: | 9.0:1 |
| Max. Power (kw/r/min): | 17.0/7500 |
| Max. Torque (N.m/r/min): | 23.5/6000 |
| Max. Speed (Km/h): | 80 |
| Lubrication: | Pressed/splash |
| Clutch Type: | Manual Clutch |
| Ignition: | capacitor storage |
| Starting System: | Electric |
| Transmission System: | Chain drive |
| Front Suspension: | Independent double wish-bone with dual surge tank |
| Rear Suspension: | Swing arm with single surge tank |
| Front Brake: | foot brake (four-wheels linkage brake) |
| Rear Brake: | foot brake (four-wheels linkage brake) |
| Stationary Brake: | Mechanical lock |
| Front Tire: | 2×7-10 |
| Rear Tire: | 2×10-10 |
| Battery: | 12V 14Ah |
| L X W X H (mm): | 1800×1160×1410 |
| Seat Height (mm): | 840 |
| Wheelbase (mm): | 1250 |
| Turning Radius (mm): | 2400 |
| Min.Ground Clearance (mm): | 145 |
| Max.Permissible Weight (kg): | 150 |
| Rider Capacity: | 2 |
| Dry. Weight (kg): | 280 |
| Engine Oil (L): | 2.5 |
| Fuel Tank Capacity (L): | 9.3 |
