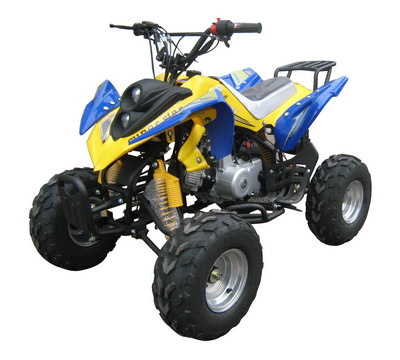

Home Farspeed Vehicle Industry Co., Ltd. 50CC Mini ATV, 50CC Kids ATV (FPA50-1)
Specifications
| Prod Model: | FPA50-1 |
|---|---|
| Certification: | CE |
| Transmission System: | Chain Drive |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Transmission Type: | Automatic |
| Displacement: | 50CC |
Product Description
50cc Kids ATV50cc Mini ATV
50cc Quad
50cc ATV
50cc Sports ATV
| Engine Type | Single cylinder, air-cooled, 4 stroke |
| Displacement | 107ml |
| Transmission System | chain drive |
| Clutch | Automatic |
| Front shock | hydraulic spring |
| Rear shock | hydraulic spring |
| Lubrication | combined force-feed and splash lubrication |
| Start mode | Electric start |
| Front Brake | drum brake |
| Rear Brake | disk brake |
| Ignition | CDI |
| Max Power Kw(r/min) | 4.7/8000kw/(r/min) |
| Max torque | 5.5/6000N·m/(r/min) |
| Front Tread | 730mm |
| Rear Tread | 570mm |
| Wheelbase | 640mm |
| Net Weight | 68kg |
| Ground Clearance | 70mm |
| Front Wheel | 16×8-7 |
| Rear Wheel | 16×8-7 |
| Compress Ratio | 9.1:1 |
| Bore ×Stroke (mm) | 52.4×49.5 |
| Head light | 12V35W |
| spark plug Model | A7RTC |
| Fuel | 90# |
| Min. Turning radius(mm) | 3500±300 |
| Front and rear tyre air pressureKpa | 69 |
| Max Speed | 40(Km/h) |
| Max Loading Capacity | 40KG |
| Tank Capacity | 3.4L |
| Size | 1530×900×1000mm |
| Carton Size | 1325mmx765mmx610mm |
| Container Quantity | 108pcs/40’HQ |
