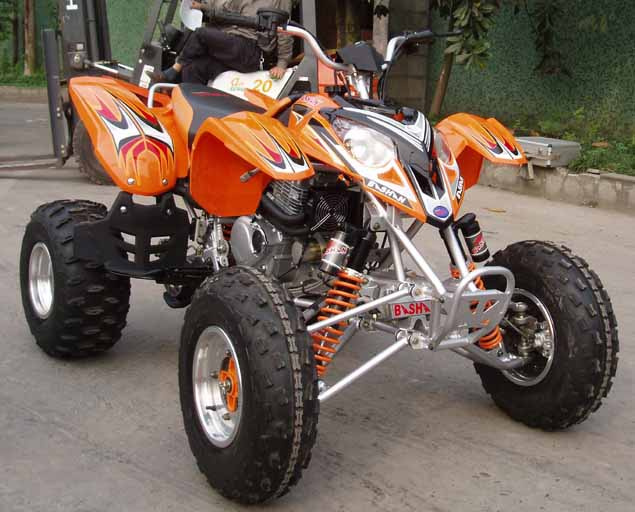

New 300cc Polars Style 6 Gear With Reverse ATV (FA300S)

Specifications

Prod Model:	FA300S

Product Description

Features: 300cc Polars Style 6gear With Reverse ATV
Engine type: Single cylinder, air-cooling, 4-stroke
1) Dimensions (L x W x H): 184 x 120 x 117cm
2) Wheel base: 123mm
4) Start mode: Electric
5) Power: 14. 7kW/8, 000rpm
6) Max. Torque: 20N. M/6, 000rpm
7) Max. Speed: 85km/h
8) Min. Ground clearance: 113mm
9) Dry weight: 190kg
10) Transmission mode: Chain
11) Break type (F/R): Disc / disc
12) Power source: 12V, 20Ah
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 10L
15) Front hanging: Double arm-swing
16) Rear hanging: Integral
17) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 11 - 9
18) Cylinder size: 78 x 61. 2mm
19) Displacement: 249mL
20) Transmission: 6 gears with reverse gear, manual clutch
21) Height of seats: 860mm
22) Min. Turning radius: 300cm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1. 3L
27) Max. Number of riders: 1
28) Lubrication: Press splash
30) Gas cylinder number: 1
Outer packing:
Dimensions: 195 x 112 x 88cm
Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 26 units
Qty/40' HQ: 39 units
