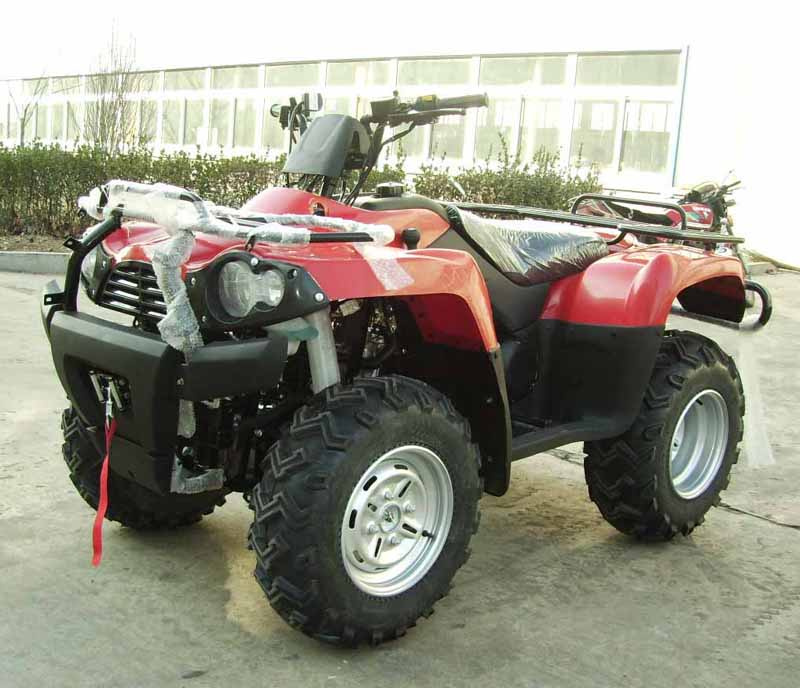

400cc EEC ATV (FA400M)

Specifications

Prod Model:	FA400M

Product Description

Engine: One Cylinder/Four Stroke
Overall Dimension L*W*H: 2070mm*1150mm*1175mm
Ground clearance: 200mm
Max Speed: ≥60km/h
Climbing Ability: ≥30
Specification of Front wheel: 25*8-12(38F)
Specification of Rear wheel: 25*10-12(45F)
GP: 350kg
Dry weight: 300kg
system front/rear Brake: Disk/Disk
Cylinder dia...*Working stroke: 82mm*82mm
Efficient Capacity: 379ml
Rated Power and Rotate Speed: 13KW/5000r/min
Max Torque and Rotate Speed: 23N. m/6000r/min
Transmission: 4WD/2WD /Shaft drive
Starting System: Electric
Cooling System: Water- Cooling
Fuel tank: 13L
Loading: 12PCS/20GP 36PCS/40HQ
Packing measure: 1950*1150*860mm
