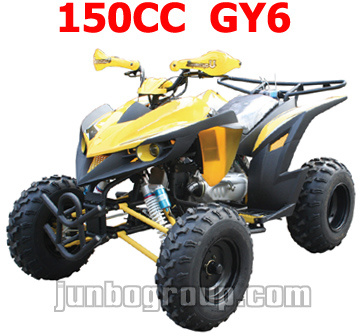

New 150cc ATV / Quad with Cvt System And Reverse Gear (DR755)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | DR755 |
|---|---|
| Engine Type: | 4 Stroke |
| Displacement: | 150CC |
| Transmission Type: | Automatic |
| Transmission System: | Chain Drive |
| Certification: | CE |
Product Description
Pls take your time to browse our web site for more information about this product.Engine: 150cc, GY6, full automatic with reverse gear
Bore x stroke (mm): 63.5 x 62.2
Max Power (kW/rpm): 10.5/7500
Battery: 12V, 9Ah
Ignition type: CDI
Start way: Electric start
Brake(front/rear): Drum/disc brake
Wheelbase: 1140mm
Distance between wheel: Front: 930m, Rear: 770mm
Drive: Chain drive
Minimum Ground Clearance: 100mm
Max. Torque (N. M/rpm): 13/6000-6500
Front tire: AT 19 x 7-8'
Rear tire: AT 18 x 9.50-8'
N. W.: 162kg
G. W.: 172kg
Max. Load capacity: 120kg
Oversize: 1, 792 x 1, 080 x 1, 180mm
Carton size: 1, 650 x 1, 160, 840mm
Conveyance:
Qty/20' GP: 12units
Qty/40' HQ: 42units
New 150cc ATV with CVT System and Reverse Gear
150cc atv,cvt atv,atv,gy6 atv,150cc quad,cvt quad,gy6 quad,150cc quad bike
