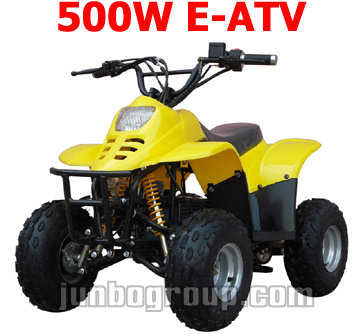

500W Electric Powered ATV, E-Quad (DR105)

Specifications

Prod Model:	DR105

Product Description

Motor:
Output: 500W
Voltage: 36VDC
Rated current: 17A

Chassis:
Brakes(Front/Rear): Disc
Absorber(front/rear): Spring absorber
Front tire: 14.5x7-6'
Rear tire: 14.5x7-6'

Dimensions:
Wheel base: 630mm
Seat height: 850mm
Ground clearance: 130mm
Max speed: 60km/h
Max load capacity: 120Kgs

Packing:
N. W: 82kgs
G. W: 94kgs
Carton dimensions: 1150 x 690 x 590mm

Conveyance:
Qty/20' FCL: 48PCS
Qty/40' FCL: 102PCS
Qty/40' HQ: 136PCS
