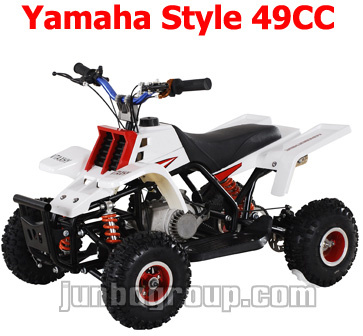

Mini ATV, Quad Bike 49CC Quad Yamaha Style (DR708)

Specifications

Prod Model:	DR708
Certification:	CE
Displacement:	50CC
Transmission Type:	Manual
Structure:	Multi-door
Engine Type:	2 Stroke
Transmission System:	Chain Drive

Product Description

Engine
1. Type: 2-Stroke, Single cylinder, Air-cooled
2. Displacement: 49CC
3. Bore x Stroke (mm): 40x32
4. Compression Ratio: 10.0: 1
5. Drive system: Chain
6. Start system: Pull start
7. Ignition: CDI
8. Max Speed (km/h): 33.5
9. Max Power KW(r/min): 1.52/6500
10. Max Torque N. M(r/min): 2.3/6000

Chassis
11. Suspension / Front & Rear: Spring shock absorber
12. Brake / Front & Rear: Double Disc/Single Disc
13. Tires / Front & Rear: 4.10-4
14. Rated load(kg): 50

Product Size
15. LxWxH (mm): 1040x680x690
16. Seat Height (mm): 420
17. Ground Clearance (mm): 70
18. Wheelbase (mm): 700
19. Fuel Capacity (L): 1
20. Wheel tread(F/R)(mm): 500/500

Packaging
N. W. (kg): 28
G. W. (kg): 33
Carton size(mm): 990x580x520
Conveyance:
Qty/20': 88PCS
Qty/40': 239PCS
