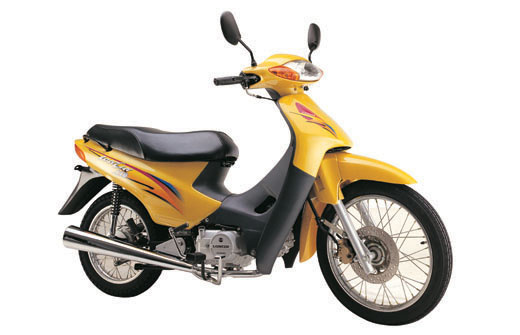

Loncin Motorcycle-3

Specifications

Product Description

Engine Type One cylinder,4 stroke,air-cooled
Bore*Stroke (mm) 52.4*49.5
Piston Displacement (cc) 107
Compression Ratio 9.1:1
Max. Power (kw/rpm) 5.5/8 000
Max. Torque (N.m/rpm) 6.5/(5500-6000)
Transmission System Chain Drive
Ignition Type C.D.I
Starter System Electric/Kick
Transmission 4 Speed

L*W*H (mm) 1900*660*1070
Wheel Base (mm) 1260
Ground Clearance (mm) 130
Dry Weight (kg) 100
Brake (Front/Rear) Disk/Drum
Tyre, Front 2.50-17
Tyre, Rear 80/100-14
Fuel Tank Capacity (L) 3.2
Engine Oil Capacity (L) 0.8
Max. Load Capacity (kg) 150
Max. Speed(km) 80
Battery(V/Ah) 12V/5Ah
loading(20'/40') 39/84
