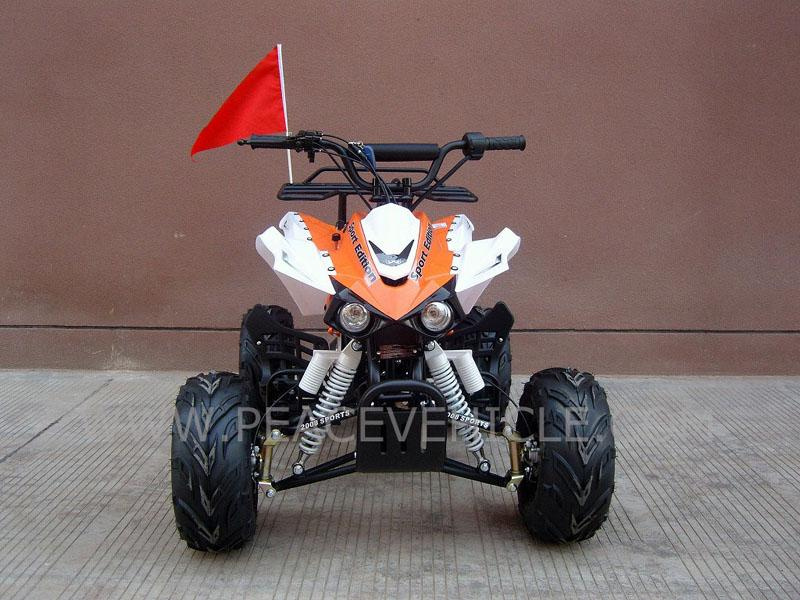

Latest EPA / DOT ATV (ATV-002A)

Specifications

Prod Model:	ATV-002A

Product Description

EPA /DOT ATV
ATV-002A

Engine Type: 1-Cylinder, 4-storke, Air-cooled
Displacement: 107cc
Max power: 4.2kw/8000rpm
Max Torque: 5.8Nm/6000rpm
Lubrication: C. D. I
Starting: Electric
Final Drive: Chain Drive
Transmission: Full Automatic
Front/Rear Suspension: Ballonet
suspension(Optional: spring hydraulic suspension)
Front/Rear Brake: Dual hydraulic disc/Hydraulic disc
Front/rear Tire: 16x8.0-7/16x8.0-7
Wheel hub: Aluminum(Optional: iron wheel hub)
Foot pedal: Aluminum(Optional: gridding bell)
Max Speed: 50km/h
Tire Distance: F: 740mm/R: 690mm
Wheel Base: 935mm
Mini Ground Clearance: 105mm
Net/Gross weight: 97/110kgs
Dimension: 1370 x 1010 x 950mm
Carton Size: 1230 x 775 x 645mm
Container: 108PCS/40''HQ
