Home China Peaceyuli Group Co., Limited 200cc Water Cooled ATV (ATV200-LCDW)

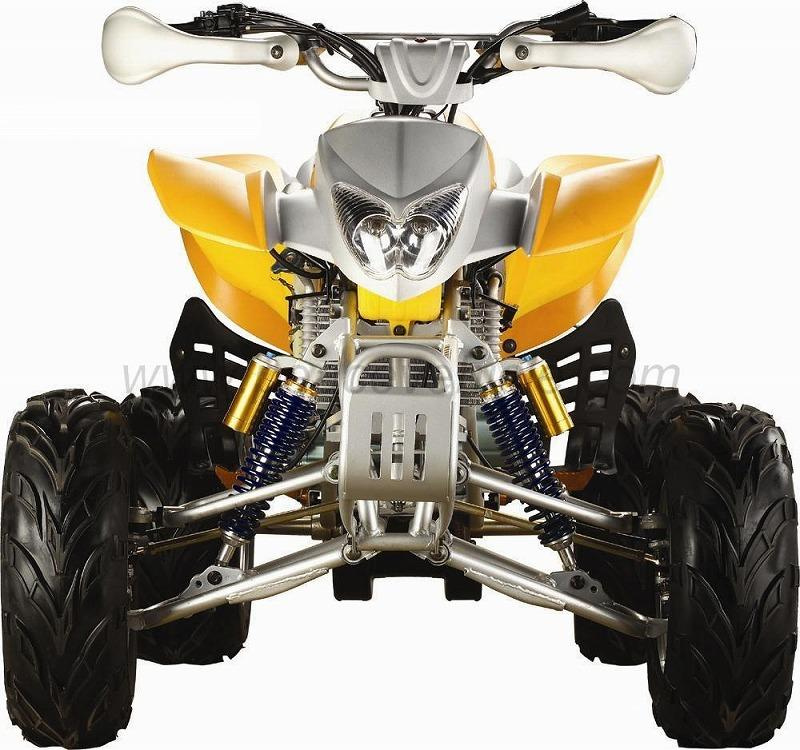

200cc Water Cooled ATV (ATV200-LCDW)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
| Pay Type: | L/C,T/T |
Specifications
| Prod Model: | ATV200-LCDW-3 |
|---|
Product Description
ATV200-LCDW (200cc):Engine type: single cylinder, water-cooled, four strokes
Dimensions (L x W x H) (mm): 1,680 x 1,150 x 1,020
Wheelbase (mm): 1,160
Engine type: single cylinder, water-cooled, four strokes
Start mode: electric
Rated power (kW/r/min): 9.5kW/7,500r/min
Max. torque (N.m/r/min): 12.1N.m/6,500r/min
Max. speed (km/h): ≥80km/h
Min. ground clearance (mm): 100
Dry weight (kg): 167
Transmission mode: chain
Brake type: disk / disk
Battery specification: 12V 9Ah
Climb degree: ≥20
Tank capacity (L): 4L
Front suspension: double A-arms, with air and hydraulic alloy shock absorber
Rear suspension: internal air shock absorber
Tyre size: front wheel: 21 x 7.0-10; rear wheel: 20 x 10-10
Bore x stroke (mm): 63.5 x 62.2
Displacement (ml): 197
Gearshift: four gears with reverse gear, manual clutch
Height of seat (mm): 850
Min. turing radium (mm): 2,650
Parking: mechanical lock
Ignition mode: CDI
Max. load (kg): 150
Engine oil (L): 0.9
Gear oil (L): 0.2
Lubrication: pressure splash
Compression ratio: 9.2:1
Carton Size: 1,490 x 850 x 880mm
Container: 20pcs/20'FCL, 44pcs/40'FCL, 66pcs/40'HQ
