Price: | US $ 1650-1950/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 3/Piece |
Pay Type: | L/C,T/T |
Specifications
Prod Model: | JY250-1A |
---|---|
Markets: | South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Colors: | Grey, Red, Yellow, Blue, Green, Black |
Delivery Time: | 30 Days |
MOQ: | 3 Units |
Transmission System: | Chain Drive |
Transmission Type: | Manual |
Certification: | ISO9001 |
Engine Type: | 4 Stroke |
Fuel: | Gas / Diesel |
Displacement: | 250CC |
Structure: | Without Door |
Maximum Speed: | >75 km/h |
Brake Type: | Disc Brake |
Product Description
Road Legal 250CC ATVThis is a unique quad,
This is a new design concept,
This is a chanllege to traditional concept of quad,
It named —— CAV ! Comfortable Activity Vehicle.

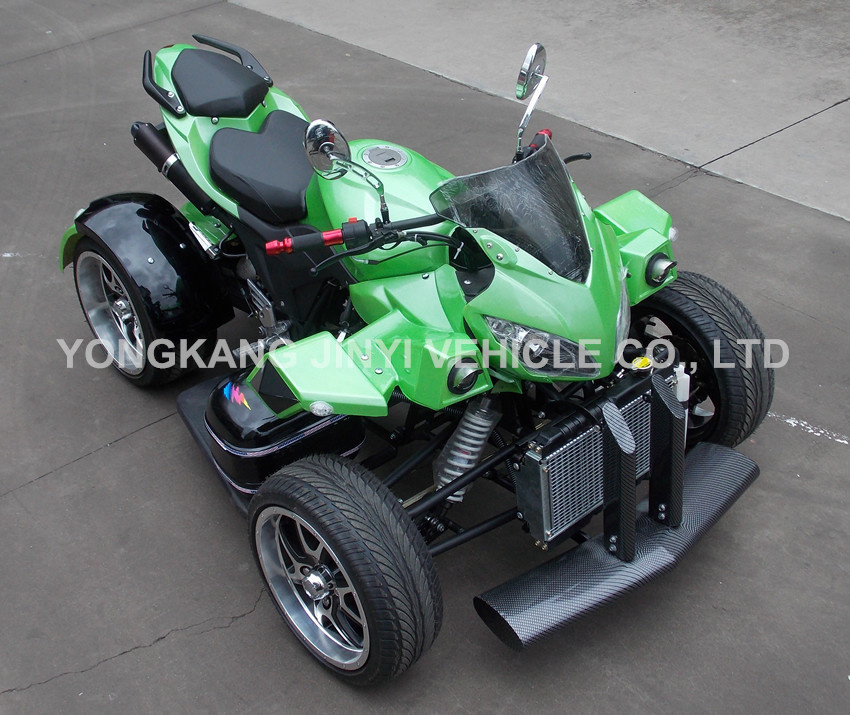

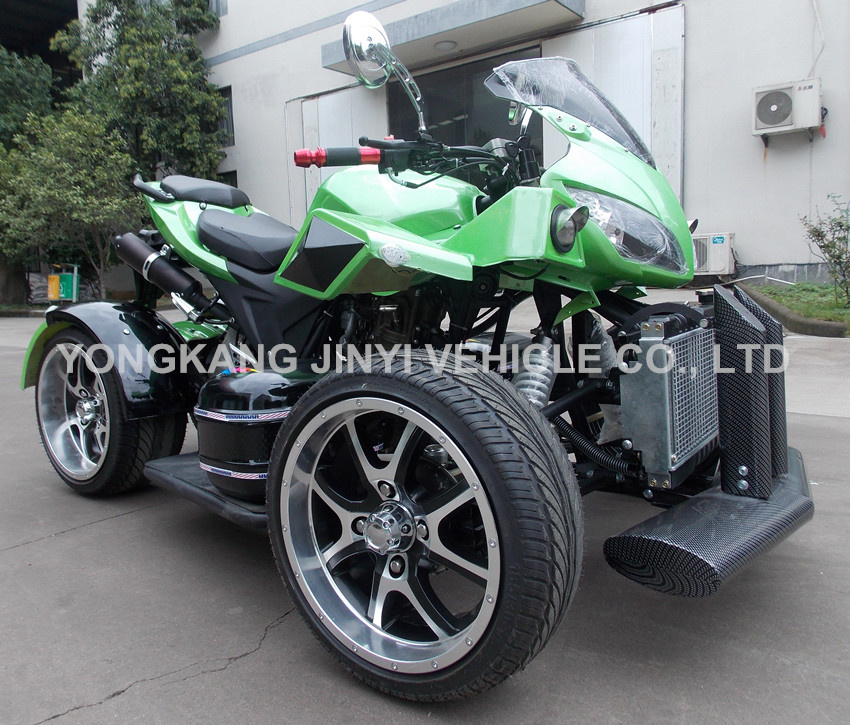

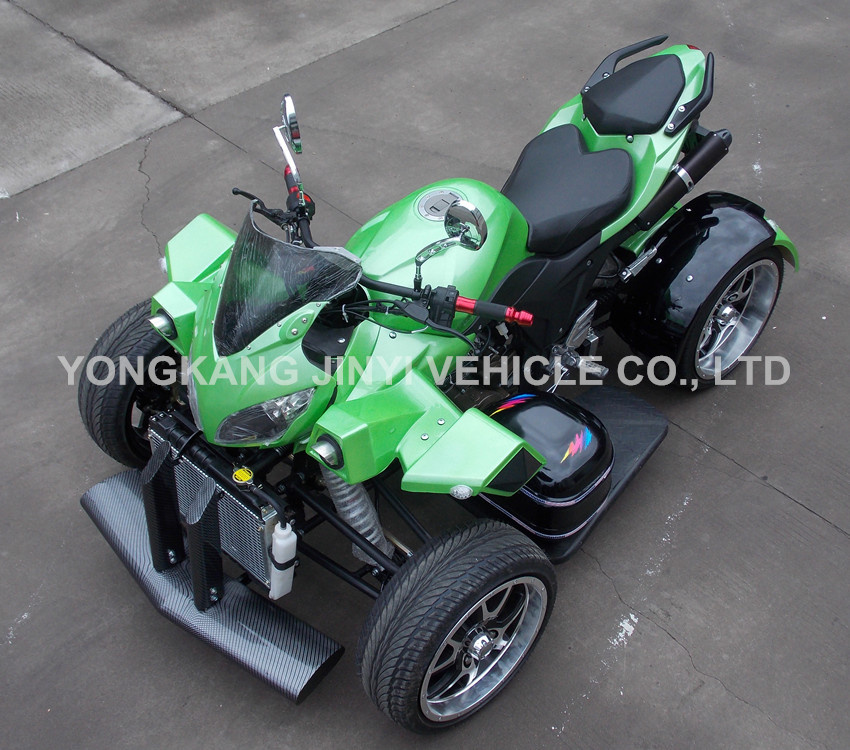

Reference Photos
1, Engine type | 250CC,4-stroke, Water Cooled. |
2, Max. torque | 18.5Nm/4500rpm |
3, Max power | 12.5kw/7500rpm |
4, Ignition type | CDI |
5, Transmission | Manual |
6, Brake (Front/Rear) | Disc/Disc |
7, Starting system | Electric start |
8, Battery spec | 12V,9AH |
9, Front suspension details | Double A x swing arm,:air chamber shock absorbers |
10, Rear suspension details | Inner ballonet absorber |
11, Front tire spec | 185/30 - 14 |
12, Rear tires spec | 235 /30 - 14 |
13, Vehicle dimensions | 203x 130x 100cm |
14, Wheel base | 138cm |
15, Seat height from ground | 95cm |
16, Ground clearance | 110mm |
17, Loading capacity | 200kg |
18, G.W | 230kg |
19, N.W | 200kg |
20, Packing size | 180x 74 x 81cm |
Capacity: | |
21, Qty/20" GP | 18 units |
22, Qty/40" HQ | 50 units |
