Price: | US $ 1650-1900/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Specifications
Prod Model: | jy-250-1a |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Colors: | Grey, Red, Yellow, Blue, Green, Black, Orange |
Delivery Time For Mass Production: | 25-30 Days After Received The 30% Deposit |
MOQ: | One Piece |
Front Huajian Tire Spec: | 185/30-14" |
Rear Huajian Tires Spec: | 235/30-14" |
Vehicle Dimensions: | 203*130*100cm |
Load Capacity: | 200kg |
Fuel Tank Capacity: | 17L |
Max Speed: | 95km/H |
Max Distance Of Full Fuel: | 150-180km |
Transmission Type: | Manual |
Engine Type: | 4 Stroke |
Structure: | Without Door |
Displacement: | 250CC |
Transmission System: | Chain Drive |
Fuel: | Gas / Diesel |
Brake Type: | Disc Brake |
Certification: | ISO9001 |
Condition: | New |
Maximum Speed: | 95km/H |
Product Description
YELLOW COOL DESIGN 250CC ATV DOUBLE SEATS EEC APPROVED ON ROAD ATVThis is a unique quad,
This is a new design concept,
This is a chanllege to traditional concept of quad,
It named —— CAV ! Comfortable Activity Vehicle.
250CC ATV EEC approved for legal road driving
1, Engine type | 250CC, 4-stroke, Water Cooled. |
2, Max. torque | 18.5Nm/4500rpm |
3, Max power | 12.5kw/7500rpm |
4, Ignition type | CDI |
5, Transmission | Manual |
6, Brake (Front/Rear) | Disc/Disc |
7, Starting system | Electric start |
8, Battery spec | 12V,9AH |
9, Front suspension details | Double A x swing arm,air chamber shock absorbers |
10, Rear suspension details | Inner ballonet absorber |
11, Front tire spec | 185/30 - 14 |
12, Rear tires spec | 235 /30 - 14 |
13, Vehicle dimensions | 203x 130x 100cm |
14, Wheel base | 138cm |
15, Seat height from ground | 95cm |
16, Ground clearance | 110mm |
17, Loading capacity | 200kg |
First put each item in steel frame and then put them together into the carton box.
18, G.W | 230kg |
19, N.W | 210kg |
20, Packing size | 183x 77 x 86cm |
Capacity: | |
21, Qty/20" GP | 18 PCS |
22, Qty/40" GP | 36 PCS |
23, Qty/40" HQ | 48 PCS |
Warranty:Engine and frame :12 months,others 3 months.

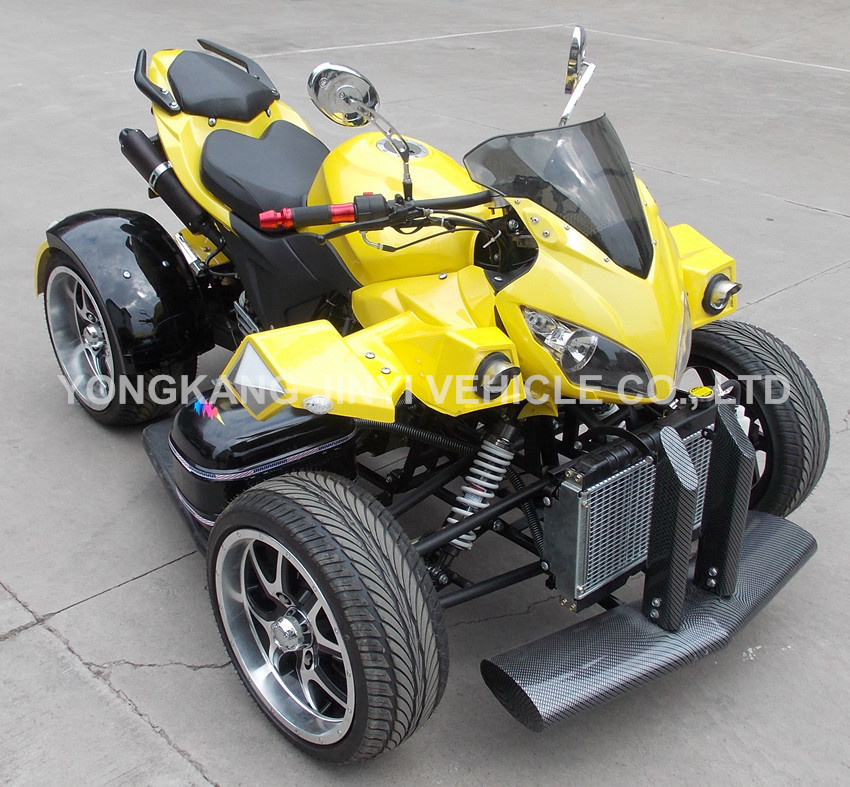

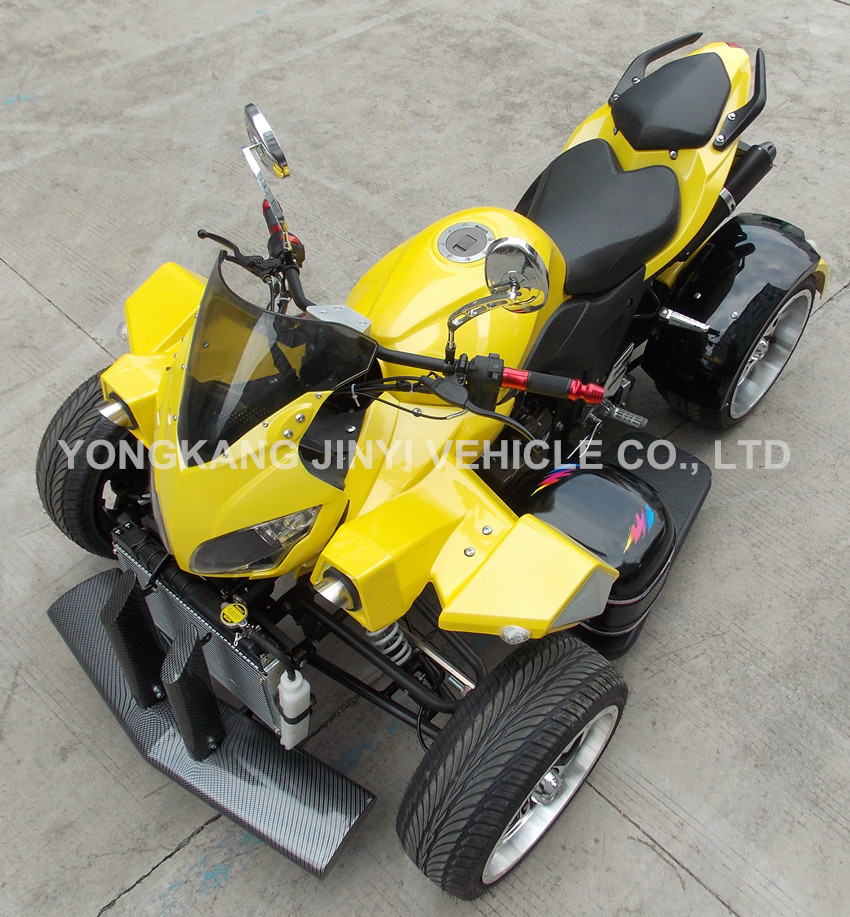

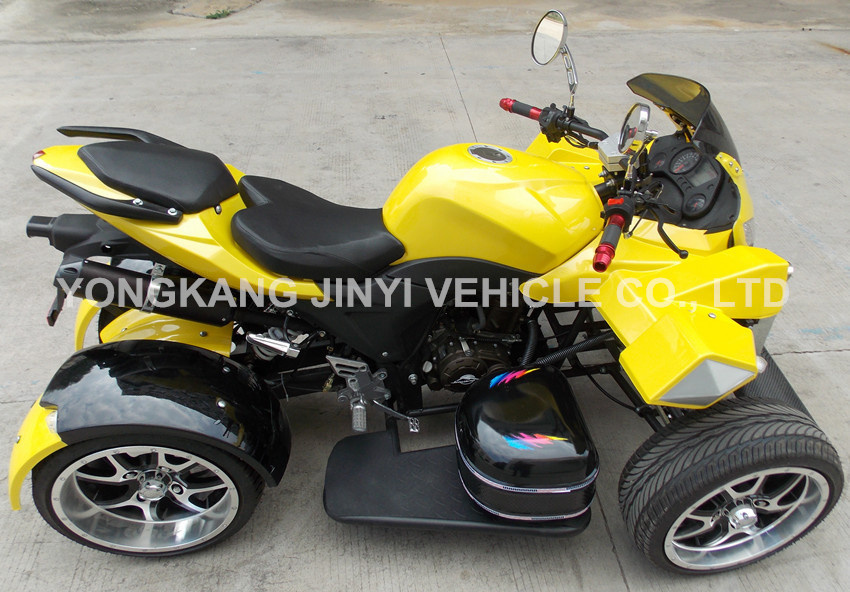

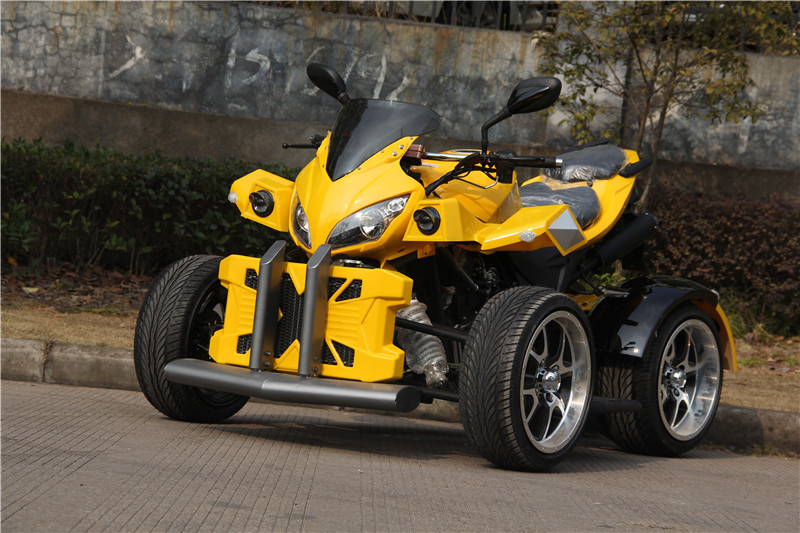

Reference Photos
