Specifications

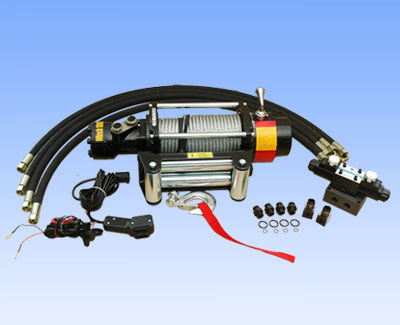

Product Description
Motor: hydraulic motor
Rated motor pressure: 10 MPa
Rated motor power: 6.2 KW
Rated motor flow: 50 L/min
Motor run speed: 580 RPM
Rated line pull: 15000LB(6818kg)
Gear train: 2 stage planetary
Gear ratio: 33.3 :1
Drum size:diameter: 3.46"(88mm) X length:8.8"(222 mm )
Wire rope: 26.5m(length) of 12mm (diameter)
fairlead : 4-way roller fairlead?
weight : N.W.:(45kg),G.W.:(50Kg)
Overall size: (L×W×H) (540×196×223mm)
Mounting bolt pattern: 254×114mm
Performance specifications |
Single line pull: | 15000lbs |
Gear ratio: | 33.3:1 |
Motor: | Hydraulic motor |
Drum size: | D88mm×L222mm) |
Cable: | 12mm×26.5m |
Mounting bolt pattern: | 10.00±0.015″×4.50±0.010″(254×114mm) |
| | 1 | 2 | 3 | 4 |
Rated line | lbs | 15000 | 12100 | 10100 | 8800 |
Pull per layer | kgs | 6818 | 5500 | 4590 | 4000 |
Line speed | m/min | 5.4 | 6.7 | 8.0 | 9.3 |
