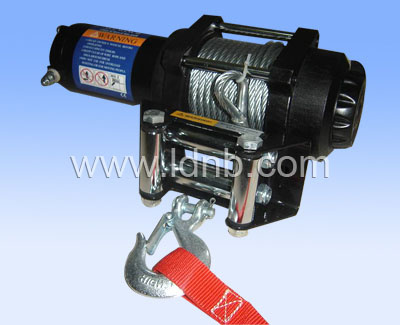

ATV Winch (LDH2500-A/LDH3000-A)

Specifications

Product Description

ATV /UTV 2500lbs WINCH
Specifications:

Rated Line Pull: 2500lbs. (1134kgs. ) single-line
Motor: 12V DC, 1.9hp (700w) permanent magnet
Control: Handlebar mounted Mini-rocker switch
Gear train: 3-Stage Planetary
Gear Patio: 136: 1
Clutch(freespooling): Cam activated
Brake: Dynamic. Mechanical brake is available.
Drum Diameter/ Length: 2.0" /2.9"
Wire Rolle: 50', 3/16" diameter(15.2m, 4.8mmdiam)
Fairlead: Roller
Recommended Battery: 12 Amp/ hour minimum for winching
Battery Leads: 6 gauge
Finish: Black


Performance Data
Line Pull (lbs/kg) Line Speed Motor (Amps)
0 27ft (8.3m) 15
1, 000 (454) 20ft (6.1m) 60
1, 500 (680) 14ft (4.3m) 100
2, 000 (907) 10ft (3m) 130
2, 500 (1134) 7ft (2.1m) 160

Above performance specs are based on first layer of drum
Layer Rated Line Pull (lbs. /kgs) Tatal Rope On Drum (ft/m)
1 2500 (1134) 8.85 (2.7)
2 2134 (968) 19.22 (5.86)
3 1861 (844) 31.11 (9.48)
4 1650 (748) 44.52 (13.58)
5 1483 (673) 50.0 (15.2)

ATV /UTV 3000lbs WINCH
Specifications:

Rated Line Pull: 3000lbs. (1360kgs. ) single-line
Motor: 12V DC, 1.0hp (770w) permanent magnet
Control: Handlebar mounted Mini-rocker switch
Gear train: 3-Stage Planetary
Gear Patio: 136: 1
Clutch(freespooling): Cam activated
Brake: Dynamic. Mechanical brake is available.
Drum Diameter/ Length: 2.0" /2.9"
Wire Rolle: 50', 3/16" diameter(15.2m, 4.8mmdiam)
Fairlead: Roller
Recommended Battery: 12 Amp/ hour minimum for winching
Battery Leads: 6 gauge
Finish: Black

Performance Data
Line Pull (lbs/kg) Line Speed Motor (Amps)
0 27ft (8.3m) 15
500 (227) 20ft (6.1m) 40
1, 000 (454) 16ft (4.9m) 60
2, 000 (907) 9ft (2.7m) 130
3, 000 (1361) 5ft (1.5m) 190

Above performance specs are based on first layer of drum
Layer Rated Line Pull (lbs. /kgs) Tatal Rope On Drum (ft/m)
1 3000 (1361) 8.85 (2.7)
2 2561 (1162) 19.22 (5.86)
3 2234 (1013) 31.11 (9.48)
4 1981 (899) 44.52 (13.58)
5 1779 (807) 50.0 (15.2)
