Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ebike Motor: |
250W |
Ebike Wheel Size: |
16"*2.15" |
Lithium Battery: |
36V10A |
Max. Speed: |
25km/H |
Net Weight: |
30kg |
Protection: |
Under-Voltage Protection 28V |
Safety Device: |
Over-Current Protection 13A |
Hub: |
Alloy Spoke Wheel |
Frame: |
High-Carbon Steel |
Chain Ring: |
Alloy Equip 36 Tooth |
Wheel Hub: |
Alloy Hubs |
Voltage Of Battery: |
36V |
Folded: |
Unfolded |
Motor: |
Brushless |
Battery Type: |
Lithium Battery |
Frame Material: |
Steel |
Power: |
200-250W |
Maximum Loading Capacity: |
75-120kg |
Running Distance: |
45-60KM |
Charging Time: |
<6h |
Certification: |
En15194 |
Wheel Size: |
16" |
Part: |
Wheel |
Max Speed: |
20-40km/h |
Brake: |
Front Drum Brake, Front Band Brake |
Product Description

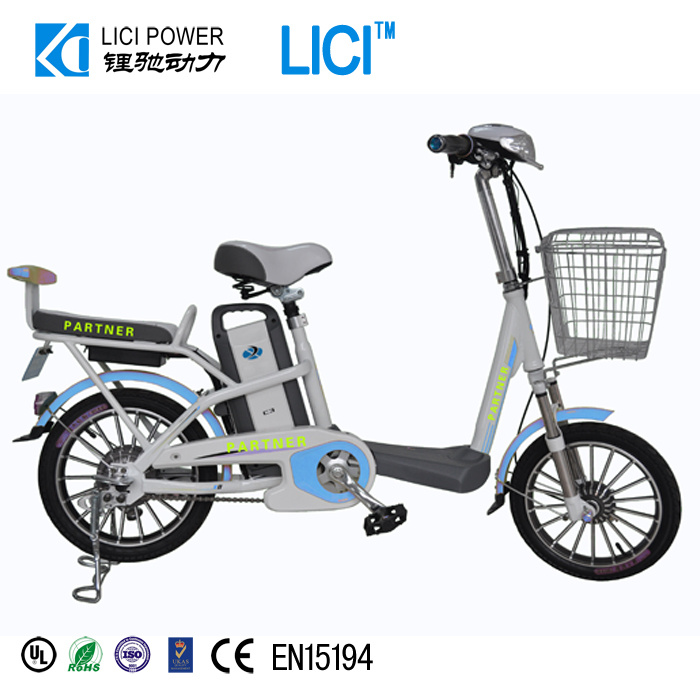

MODEL: LC-C3
1.0 Vehicle type:
Type of 2W Electric Vehicle (with / without pedal assistance): Type of 2W Electric Vehicle without pedal
Assistance
2.0 Vehicle Performance:
Max. Design speed, km/h: 25km/h
Max. Power (W): 250W
3.0 Weights:
Vehicle Net weight, kg: 30kg
Maximum Gross Vehicle Weight, kg: 33kg
4.0 Riding/ Seating capacity:
Maximum (Including driver): 100kg
5.0 Vehicle Dimensions:
Length, mm: 1560mm
Width, mm: 590mm
6.0 Tyres:
Tyre type (Radial/cross ply) & size: Radial; 16"*2.125"
Inflation pressure-Unladen, kg/cm² : Front &Rear: 4.83kg/cm²
Inflation pressure-Laden, kg/cm² : Front &Rear: 6.90kg/cm²
7.0 Braking system:
Front (Disc / Drum / Any Other please specify ): Drum
Rear (Disc / Drum / Any Other please specify ): Band
8.0 Battery:
Type & ID. Number: Lithium battery, 7833156
Voltage and Capacity, Ah: 36V10A
9.0 Power Controller
Control Principle: Closed loop
Maximum effective current supplied to the Motor: 13A
Voltage range use: 28-42V
Safety devices: Under-voltage protection(28V); Over-current protection(13A)
Charger:
On board / external: External
Model, rating: 36V2A; 36V
Specifications of AC mains supply: 220V
Nominal Voltage (V), Frequency (Hz): 36V; 55± 10%
Recommended duration of a complete charge: 4-6h
