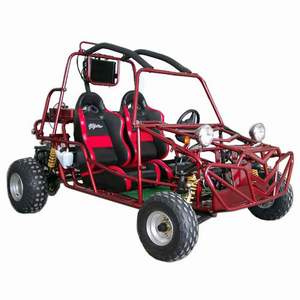

Go Kart (SYA-014)

Specifications

Prod Model:	SYA-014

Product Description

Features:
1) Engine:
a) Displacement: 244cc
b) Cooling: Liquid cooled
c) Engine Type: Single, 4-stroke
d) Max Power: 12.5kw/7500rpm
e) Max Torque: 17.6 N.m/5500 rpm
f) Lubrication: Oil injection
g) Oil Capacity: 1.0L in crankcase. 0.18 L in gearcase
h) Carburetor: 22mm-VE Mikuni
i) Fuel Capacity: 16 L with fuel indication
j) Coolant Capacity: 1.8 L in radiator. 0.42 L in reserve case
k) Starting: Electric
l) Alternator: 160watts

2) Drive System:
a) Transmission: Automatic CVT, with reverse
b) Engine speed ratio: 17.82-7.29
c) Drive: rear 2-wheel drive
d) Wheelbase: 1960mm
e) Turning Radius: 5m
f) Dry Weight: 330kg
g) Product dimensions: 2600 x 1600 x 1600mm

3) Suspension:
a) Front suspension: double A-arm strut with 80 mm travel
b) Rear suspension: single swing arm strut with 100 mm travel

4) Brake:
a) Front brake: hydraulic disc
b) Rear brake: hydraulic disc

5) Parking: mechanical lock
6) Rear 2-wheel
7) Tires:
a) Front tires: AT19?7-8 (6 psi)
b) Rear tires: AT22?0-10 (8 psi)
8) Load capacity: 200kg
9) Electrical:
a) Brake light: standard
b) Handlebar headlight: 2 days beam high/low 35/20 watts

Packing: carton dimensions: 2300 x 1450 x 760mm
