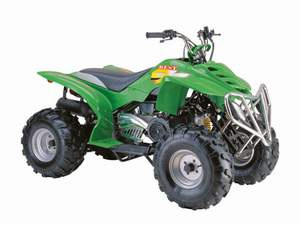

ATV - SY125ST (150CC)

Specifications

Prod Model:	SY125ST(150CC)

Product Description

Art. NO.: SY125ST(150CC)
Description: Motorcycle technical data:
Dimension: 1540*860*950MM
Wheel base(mm): 1040
Min. Ground clearance (mm): 100
Rim type: Spoke/alloy
Dry weight(kg): 130
Fr. Tyre size and air pressure: 20X7-8/ 200kpa
Rr. Tyre size and air pressure: 20X7-8/225kpa
Fr. Brake: Disk/drum Rr. Brake: Drum
Max. Loading capacity(kg): 95
L Fuel tank capacity:
Max. Speed (km/h): 50
Break Performance: ≤7m/30km/h
Max. Fork advancing angel (°): 10
Max. Voice (dB(A): 83
Engine technical data:
Engine model:
Engine type: Single-cylinder, forced air-cooled,
Four-stroke
Bore X Stroke (mm):
Displacement (ml): 124
Compression ratio:
Power (kw/r/min): 5.25/7500
Max. Torque (N. M/r/min): 8.0/7500
Starting mode: Electric Start/Kick Start
Ignition mode: CDI Electronic ignition
Package information:
Package size:
Package way: Iron and Seven layer carton
