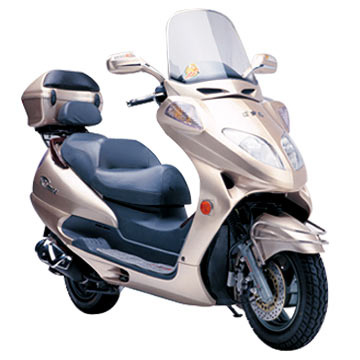

Home Zhejiang Hongzhou Motorcycle Co., Ltd. Gas Scooter (LB150T-12)
Specifications
| Prod Model: | TINGWANG |
|---|
Product Description
1. Dimensions: 2070*1400*760 (mm) 1. Engine type: LB157QMJ2. Wheelbase: 1470 (mm) 2. Displacement: 149.6 (ml)
3. Gross Weight: 133(kg) 3. Engine Style: Cylinder, Air-cooled, 4-stroke
4. Dry Weight: 128(kg) 4. Broe*stroke: 57.4*57.8 (mm)
5. Max Load: 280 (kg) 5. Ignition: C. D. I
6. Max. Speed: 85(km/h) 6. Spark plug: A7RTC-1
7. Fuel tank capacity: 11(L) 7. Max power: 5.9(Kw/7200min-1)
8. Fuel type: #90 Benzine 8. Max torque: 8.3(N. M/6500min-1)
9. Tyre and rim: F.: 4.00-12/ R.: 4.00-12 9. Impression Ratio: 9.2: 1
10. Brake style: F. Disc /R. Disc 10. Transmission type: Belt
11. Absorber style: Independent hanging 11. Lubrication: Pressure Splash
12. Battery: 12V7AH 12. Starting type: Eletrick/kick start
13. Clutch: Wet type, automatism centrifugal
