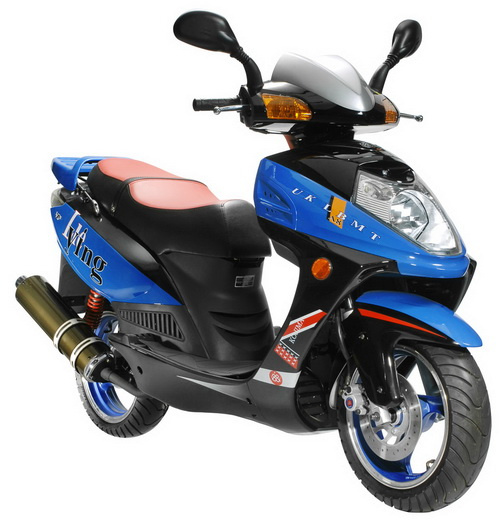

Gas Scooter (LB50QT-35)

Specifications

Prod Model:	model 3

Product Description

1. Dimensions: 1950*1150*730 (mm) 1. Engine type: 139QMB
2. Wheelbase: 1385(mm) 2. Displacement: 50(ml)
3. Gross Weight: 103(kg) 3. Engine Style: Cylinder, Air-cooled, 4-stroke
4. Dry Weight: 99(kg) 4. Broe*stroke: 39*41.4 (mm)
5. Max Load: 253 (kg) 5. Ignition: C. D. I
6. Max. Speed: 45 (km/h) 6. Spark plug: A7RTC-1
7. Fuel tank capacity: 6 (L) 7. Max power: 2.3(Kw/8000min-1)
8. Fuel type: #90 Benzine 8. Max torque: 3.0(N. M/6500min-1)
9. Tyre and rim: F.: 130/60-13/ R.: 120/70-12 9. Impression Ratio: 10.5: 1
10. Brake style: F. Disc/ R. Drum 10. Transmission type: Belt
11. Rear absorber style: Single rear suspision 11. Lubrication: Pressure Splash
12. Battery: 12V7AH 12. Starting type: Eletrick/kick start
13. Clutch: Wet type, automatism centrifugal
