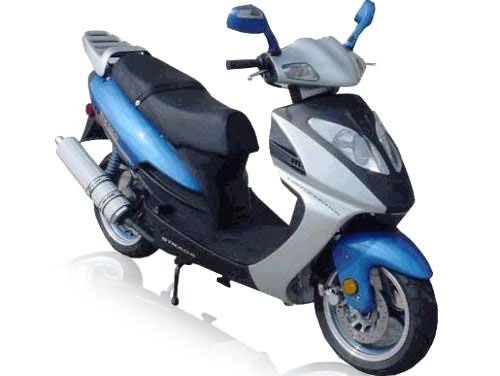

Gas Scooter HL125T-14

Specifications

Prod Model:	HL125T-14

Product Description

ENGINE
Model HL1P52QMI
Stroke 4
Cylinder 1
Cooling Forced air
Bore x Stroke(mm) 52.4 x 57.8
Displacement (ml) 9.2:1
Max power KW/(r/min) 6.3/7500
Max torque N.m/(r/min) 8.0/6000
Min fuel comsuption g/(kw.h) 367
Lubricate type compression splash
Clutch type dry,automatic
Start mode Electric/kick
Ignition type C.D.I
WHOLE VEHICLE
Whheelbase(mm) 1370
Min ground clearance(mm) 110
Dry weigh(kg) 118
Max load (kg) 150
Max speed(km/h) 80
Brake type(Front/Rear) disk/drum
Brake operation(Front/Rear) hand/hand
Battery 12V 6Ah
Fuel capacity(L) 6.5
Hub type(Front/Rear) light alloy/light alloy
Tyre size(Front/Rear) 130/60-13 130/60-13
Dimension LxWxH(mm) 1960x715x1370
Packing(mm) 1680x570x850
CONTAINER
20'FCL 24units
40'FCL 48units
40'HQ 72units
