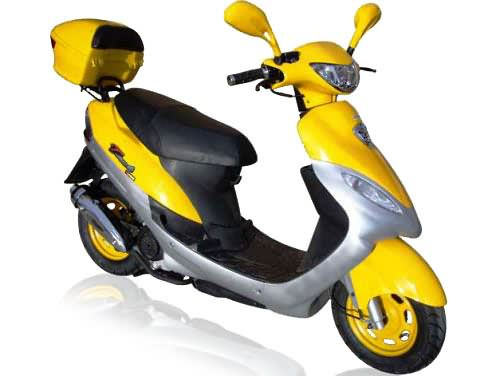

Scooter(HL50QT)

Specifications

Prod Model:	HL50QT

Product Description

ENGINE
Model: HL139QMB
Stroke: 4
Cylinder: 1
Cooling Forced air
Bore x Stroke(mm): 39.0 x 41.5
Displacement (ml): 10.5: 1
Max power KW/(r/min): 2.2/7500
Max torque N. M/(r/min): 3.0/6000
Min fuel comsuption g/(kw. H): 450
Lubricate type: Compression splash
Clutch type: Dry, automatic
Start mode: Electric/kick
Ignition type: C. D. I

WHOLE VEHICLE
Whheelbase(mm): 1195
Min ground clearance(mm): 100
Dry weigh(kg): 80
Max load (kg): 150
Max speed(km/h): 45
Brake type(Front/Rear): Disk/drum
Brake operation(Front/Rear): Hand/hand
Battery: 12V 3Ah
Fuel capacity(L): 5
Hub type(Front/Rear): Light alloy/light alloy
Tyre size(Front/Rear): 3.50-10 3.50-10
Dimension LxWxH(mm): 1650x650x1075
Packing(mm): 1640x470x850
CONTAINER
20'FCL: 30units
40'FCL: 70units
40'HQ: 105units
